Product Details:
|
| Product Name: | Steel Coil Slitting Machine | Material: | Carbon Steel, Galvanized Steel |
|---|---|---|---|
| Strip Width: | 600mm | Inner Diameter Of Coils: | Φ508mm |
| Max. Coil Weight: | 8000kg | Slitter Shaft: | Ф180 X 700 |
| Slitter Motor: | AC 22KW | Machine Color: | Standard Or Customized |
| High Light: | 4mm steel coil slitting line machine,80m/min steel coil slitting line machine,Galvanized steel slitting equipment |
||

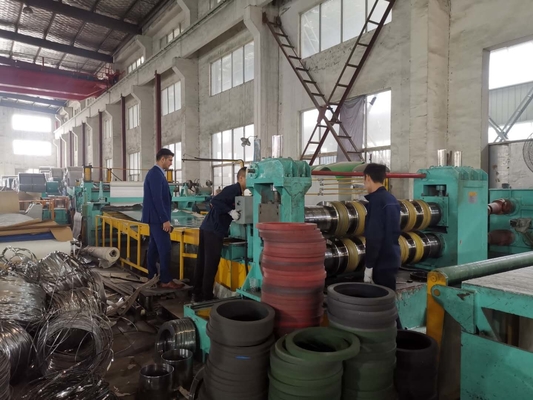

Thickness 4mm Galvanized Steel Coil Slitting Equipment Of Carbon Steel
Application:It is suitable for the longitudinal shearing of the metal coils and rewinding coils.
Advantages:Easy to operate, slitting quality is high, excellent material utilization, Stepless shearing speed regulation, etc.
Structure:It consist of uncoiler, feeding and positioning, slitting unit, recoiler, etc.
Applicable Materials:Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc.
Specifications:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 50m/min |
| MA-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 80m/min |
| MA-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 100m/min |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
Process Flow Chat:
Packaging:
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
Warranty term: 12 months (excluding easy-broken parts)
Our Service & Features:
Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
This is a very perfect and durable equipment. We have more than 10 years experiences.
This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
