Product Details:
|
| Product Name: | Automatic Steel Sheet Slitting Machine | Thickness: | 3-12mm |
|---|---|---|---|
| Strip Width: | 600-1800mm | Max.coil Weight:: | 15000kg |
| Voltage:: | 380V 50Hz 3phases | Quality Guarantee: | One Year |
| High Light: | 1800mm Strip width Steel Sheet Slitter,50Hz Automatic Steel Sheet Slitter Machine,HR Steel Sheet Slitter |
||
Automatic Steel Sheet Slitting Machine With Stably Speed
1. Description of goods:
Steel Sheet Slitting Machine is used for Slitting the steel sheet into several required strips.
2. Introduction:
This thick plate slitting line, also called metal sheet slitter, is able to slit thick steel master coil into small baby coils.
Thick Sheet Slitting Line with stably speed by PLC five rollerpinching and leveling with heavy type hydraulic decoiler.

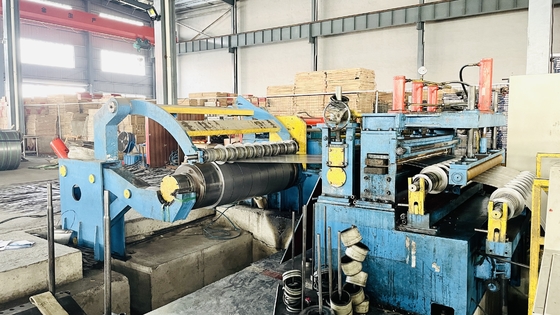

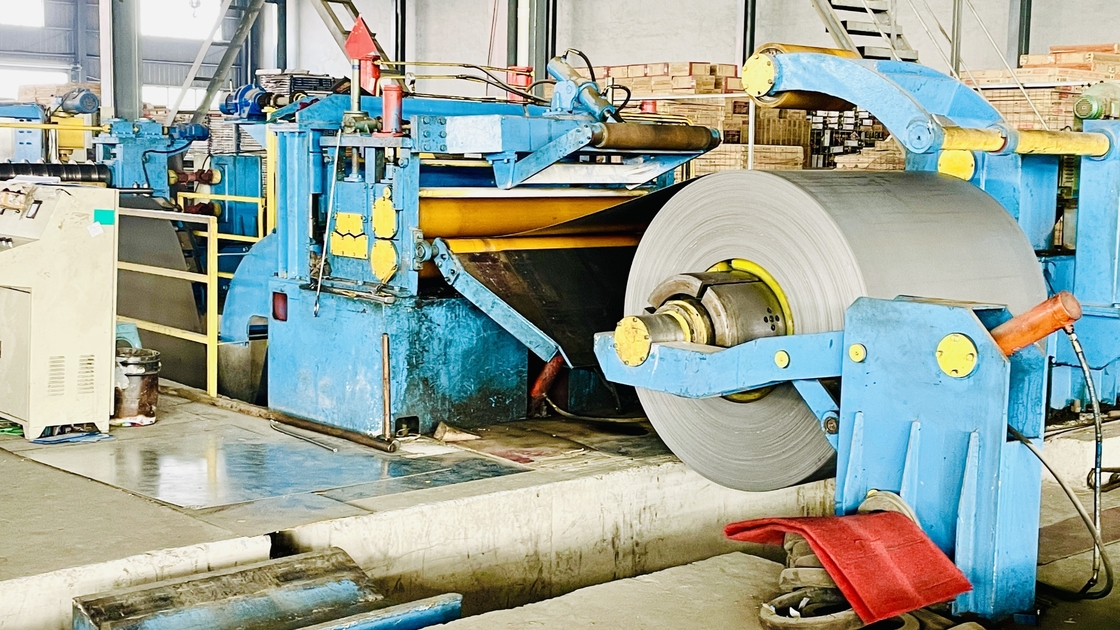

The thick coil slitting line is composed of: coil-loading car, double mandrel big-load uncoiler, portal style coil-head guide, press and shovel equipment, double roller pinching feeder, five-roller leveler, end-cutter, Roll table, Central aligner, Disc slitter, scrap winder, hole accumulator, pre-separator& tensioner, Portal style coils-separator and presser, recoiler, coil unloading car, hydraulic control, and electric control.
Capacity of different models of thick sheet slitting lines (metal coil slitter):
Strip thickness: (3~12) mm, (4-16)mm, (5~20) mm;
Strip width: 500-1800mm, 800~2000mm or 1000~2200mm.
3. Detail specification of Sheet Slitting Machine:
3.1. MA-(3-12)×1800mm Sheet Slitting Line
Material of coils: HR/CR carbon steel, galvanized plate, colored steel plate etc.
Metal Coil Slitter Strip thickness: (3~12) mm
Coil Slitting Machine Strip width: 500~1800mm
Max.coil weight: 35000kgs
Diameter of leveling rollers & tensioning roller: Φ210
Metal Coil Slitter Diameter of slitter shaft: Φ300
Disc cutters: 6CrW2Si, HRC56°~58°, OD500mm x ID300mm x T25mm.
Diameter of recoiler block: Φ610mm
Separating discs: 65Mn, OD250 x ID95 x T10/20mm
Coil Slitting Machine DC motors for slitter and recoiler: 160KW, 200KW.
Metal Coil Slitter speed: (0~30) m/min, adjustable
4. Specifications of Metal Sheet Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-12 x 1800 | 3-12mm | 600-1800mm | Max 35T | Min. 60mm | 30m/min |
| MA-16 x 2200 | 4-16mm | 800-2200mm | Max 40T | Min. 100mm | 30m/min |
| MA-20x 2000 | 5-20mm | 800-2000mm | Max 40T | Min 100mm | 20m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer’s specific requirements, so each customer can buy his own well-content coil slitting machine from us. | |||||
