Product Details:
|
| Product Name: | Sheet Metal Slitting Machine | Strip Thickness: | 3~12mm |
|---|---|---|---|
| Strip Width: | 500~1800mm | Max.coil Weight:: | 35000kg |
| Voltage:: | 380V 50Hz 3phases | Quality Guarantee: | One Year |
| High Light: | 1800mm Sheet Metal Slitting Machine,Metal Heavy Slitter Machine,Hydraulic Decoiler Metal Slitting Machine |
||

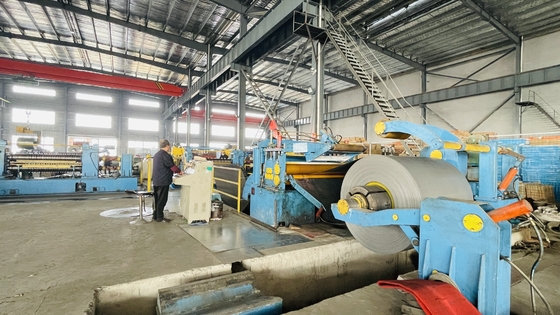

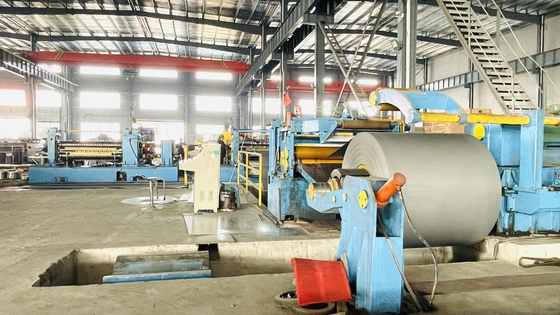

500~1800mm Sheet Metal Slitting Machine With Heavy Type Hydraulic Decoiler
1. Description of goods:
The mechanism used for the slitting process is often referred to as a slitter, a slitting machine or a slitter rewinder. To put things simply, the main role of a slitting machine is to convert (slit) papers, film and foil materials so that large rolls of these materials can be cut into narrower rolls.
2. Detail specification of Sheet Slitting Machine:
MA-(3-12)×1800mm Sheet Slitting Line
Material of coils: HR/CR carbon steel, galvanized plate, colored steel plate etc.
Metal Coil Slitter Strip thickness: (3~12) mm
Coil Slitting Machine Strip width: 500~1800mm
Max.coil weight: 35000kgs
Diameter of leveling rollers & tensioning roller: Φ210
Metal Coil Slitter Diameter of slitter shaft: Φ300
Disc cutters: 6CrW2Si, HRC56°~58°, OD500mm x ID300mm x T25mm.
Diameter of recoiler block: Φ610mm
Separating discs: 65Mn, OD250 x ID95 x T10/20mm
Coil Slitting Machine DC motors for slitter and recoiler: 160KW, 200KW.
Metal Coil Slitter speed: (0~30) m/min, adjustable
3. Specifications of Metal Sheet Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-12 x 1800 | 3-12mm | 600-1800mm | Max 35T | Min. 60mm | 30m/min |
| MA-16 x 2200 | 4-16mm | 800-2200mm | Max 40T | Min. 100mm | 30m/min |
| MA-20x 2000 | 5-20mm | 800-2000mm | Max 40T | Min 100mm | 20m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer’s specific requirements, so each customer can buy his own well-content coil slitting machine from us. | |||||
