Product Details:
|
| Description Of Goods: | Steel Coil Slitting Line Machine | Material Of Coils: | CR, Color Steel, PPGI, Q235，AL Coils，Copper Coils |
|---|---|---|---|
| Metal Coil Slitter Strip Thickness: | 1.0～6.0mm | Strip Width: | 2000mm |
| Max.coil Weight: | 30Tons | Voltage: | 380V 50Hz 3phases Or Order By The User |
| Quality Guarantee: | One Year After Shipping | Color: | As Our Standard Or Order By User |
| High Light: | 290KW Steel Sheet Slitting Machine,2000mm Slitting Line,Parker 590 Steel Sheet Slitting Machine |
||
1. Description of goods:
Customer-oriented MA(0.8-4.0)X2000mm with Siemens PLC DC controller Parker 590 Slitting Line
2. Specifications of this line:
| Coil material | CR,color steel,PPGI,Q235 |
| Coil thickness | 0.8-4mm |
| Coil width | 2000mm |
| Coil ID | Ø508mm,Ø610mm,Ø760mm |
| Coil OD | Ø2000mm |
| Coil weight | 25-30 Tons |
| Blade Diameter |
Ø260mm |
| Line speed | 0-120m/min(adjustable) |
3.Layout for this line as reference:

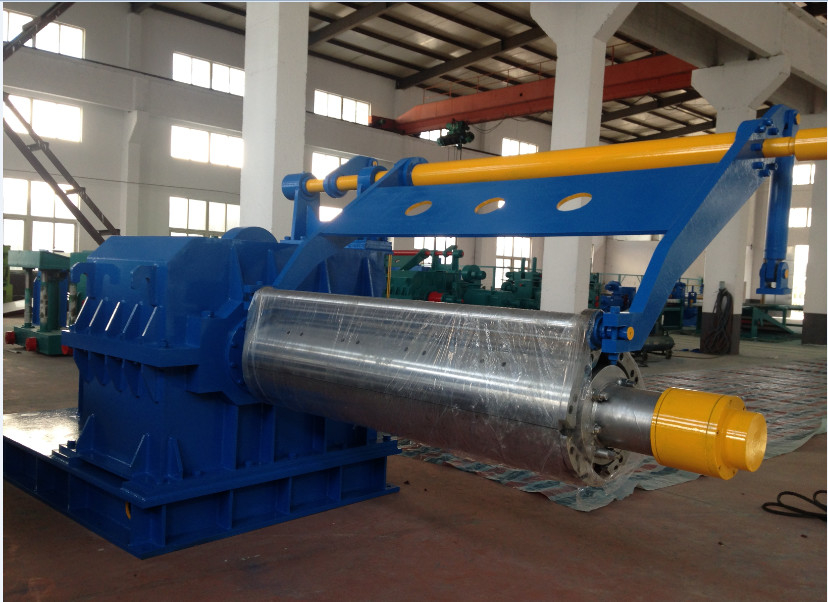

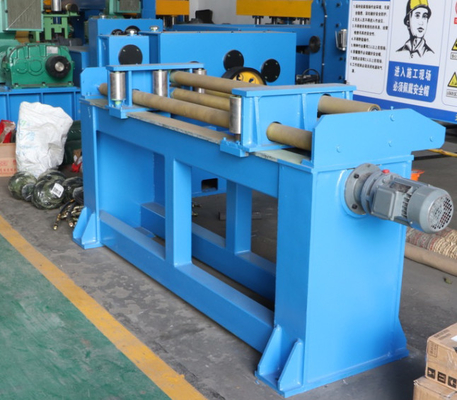

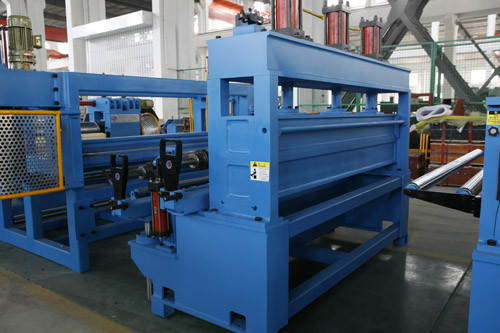

4.Reference our workshop photos
5.Quality Inspection
The machines of our company have many certificates like ISO 9001, CE, SGS, etc.
Before the shipping, we have a series of quality check system, includes 3 times of inspection for every production procedure. First inspection needs the workers to check and sign on the test report. Second inspection involves department leaders to check and sign on the test report. The Third inspection needs professional inspector to check and ensure the machines are qualified.
We also give 12 month warranty time to the customer.
