1～4×1600mm Metal/Coil Sheet Slitting Line

Metal/Coil Sheet Slitting Line Introduction:
The steel coil slitting line, composed of uncoils, feeding, shearing and other equipments, is a production line. This kind of production line is able to cut the wide steel coil into the steel coil which has certain dimension in the direction of length. This steel coil will be an input preparation for those processes, such as rolling, welding, cold bending and forming, punching. All kinds of non-ferrous strips can be cut by cutting tools of different materials.
The main function of this of this metal steel coil slitting line apply to cut the width of coils into smaller coils, and any thickness is available.

Features of Steel Coil Slitting Line:

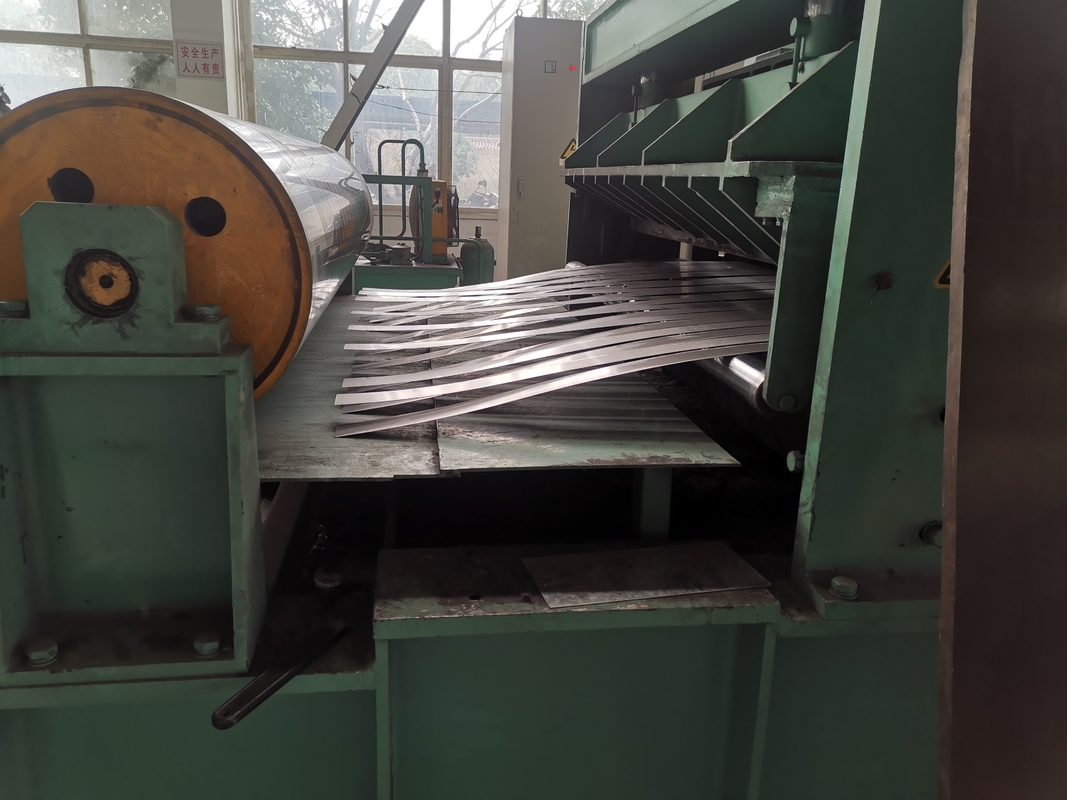

1. After slitting, the strips need coiling on the equipment.
2. Commonly, the D.C. drives are used on slitter, coiler and uncoiler so that the different mandrel speeds are retained. Therefore, the constant line speed is attained too.
3. Additionally, for faster speeds and thinner strips a loop pit is provided for installation before recoiling with tensioner equipment
4. Any different specification is available, as we can offer a comprehensive range of steel. We design and produce products in accordance with customers needs.

Application of Steel Coil Slitting Line:
This sheet metal slitting machine is suitable to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials.

Technical specification:

    1. Linear speed: 0-120m/min

2. Tool shaft: φ 230mm; Material: 40 cr

3. Number of strips: 4 pieces for 4mm thick, 10 pieces for 2mm thick, 20 pieces for less than 1mm thick

4. Round blade: φ 350x φ 230x 15mm, blade material: H13

5. Stripe width: 32mm

6. Width deviation: ±0.1mm

7. Feeding steel coil inner hole: φ 508mm, φ 610mm, φ 760mm

8. Equipment power: about 280KW

9. Feeding trolley: 25ton max

 Our service and features:

1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
2 This is a very perfect and durable equipment. We have more than 10 years experiences.

3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.

4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
