Product Details:
|
| Material Of Coils: | Carbon Steel, GI, Color Steel – Q235-Q350 | Strip Thickness: | 0.2-1.8mm |
|---|---|---|---|
| Strip Width: | 400~1300mm | Inner Diameter Of Coil:: | φ450—φ510 |
| Outer Diameter Of Coil:: | φ1500mm. Max. | Weight Of Coil: | 5 Ton. Max. |
| High Light: | Steel Coil Slitting Machine 380KW,Q235 Steel Coil Slitting Machine,GI High Precision Slitting Machine |
||
1. Description of goods:

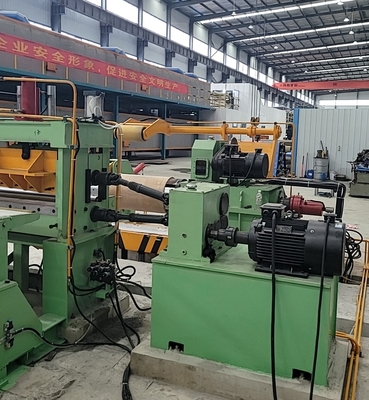

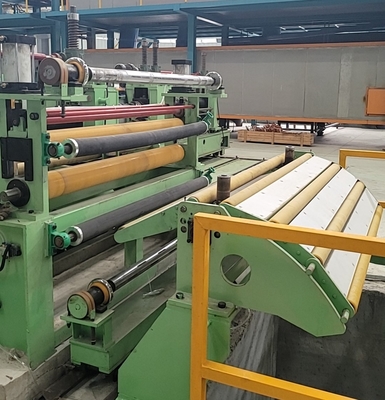

MA-1300 Steel Coil Slitting Machine with Rated power 380KW
2. Main technical parameter:
Material of coils: HR/CR carbon steel, GI, Color steel
Metal Coil Slitter Strip thickness: 0.2-1.8mm
Coil Slitting Machine Strip width: 400~1300mm
Max.coil weight: 5 Ton. Max.
Separating discs: 65Mn, OD250 x ID95 x T10/20mm
Coil Slitting Machine DC motors for slitter and recoiler: 160KW, 200KW.
Metal Coil Slitter speed: (0~30) m/min, adjustable
3. Specifications of Metal Coil Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-12 x 1800 | 3-12mm | 600-1800mm | Max 35T | Min. 60mm | 30m/min |
| MA-16 x 2200 | 4-16mm | 800-2200mm | Max 40T | Min. 100mm | 30m/min |
| MA-20x 2000 | 5-20mm | 800-2000mm | Max 40T | Min 100mm | 20m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer’s specific requirements, so each customer can buy his own well-content coil slitting machine from us. | |||||

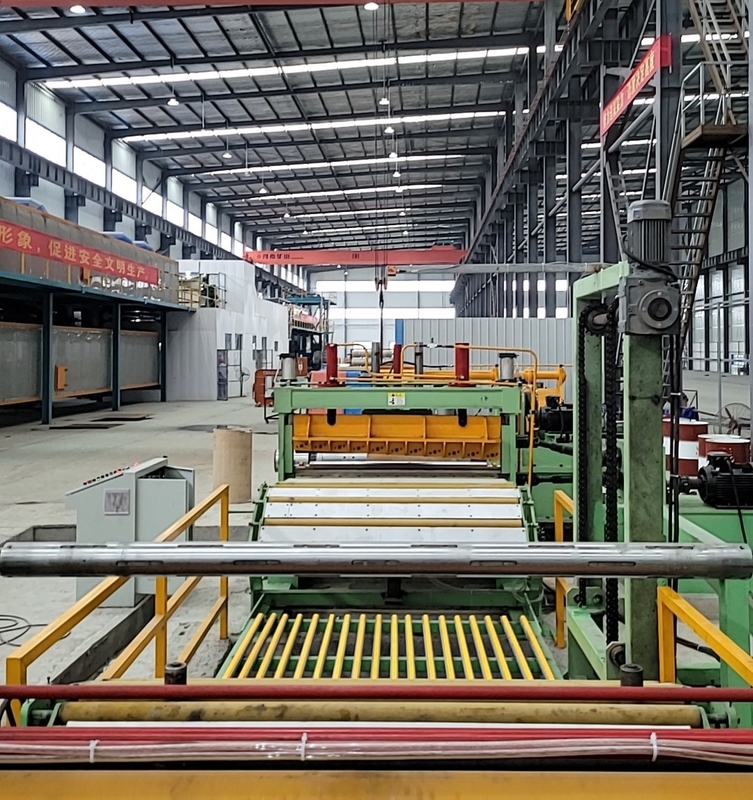

4. Features of Steel Coil Slitting Line:
1. After slitting, the strips need coiling on the equipment.
2. Commonly, the D.C. drives are used on slitter, coiler and uncoiler so that the different mandrel speeds are retained. Therefore, the constant line speed is attained too.
3. Additionally, for faster speeds and thinner strips a loop pit is provided for installation before recoiling with tensioner equipment
4. Any different specification is available, as we can offer a comprehensive range of steel. We design and produce products in accordance with customers needs.
5. Application of Steel Coil Slitting Line:
This sheet metal slitting machine is suitable to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials.
6. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: MAZS have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
