Product Details:
|
| Description: | Copper Strip Slitting Machine | Material: | Copper |
|---|---|---|---|
| Strip Thickness: | 0.3-3 Mm | Max. Strip Width: | 1600mm |
| Max. Coil Weight: | 20000Kgs | Slitter Motor: | 75KW DC Motor |
| Slitter Shaft: | Ф220 X 1650mm | Recoiler Block: | Ф508 X 1700mm |
| Recoiler Motor: | 90KW DC Motor | Slitting Speed: | Max. 100m/min, Adjustable |
| High Light: | Automatic Copper Strip Slitting Machine,Adjustable Tensioner Strip Slitting Machine,Strip Slitting Machine 90KW |
||
1. Product name

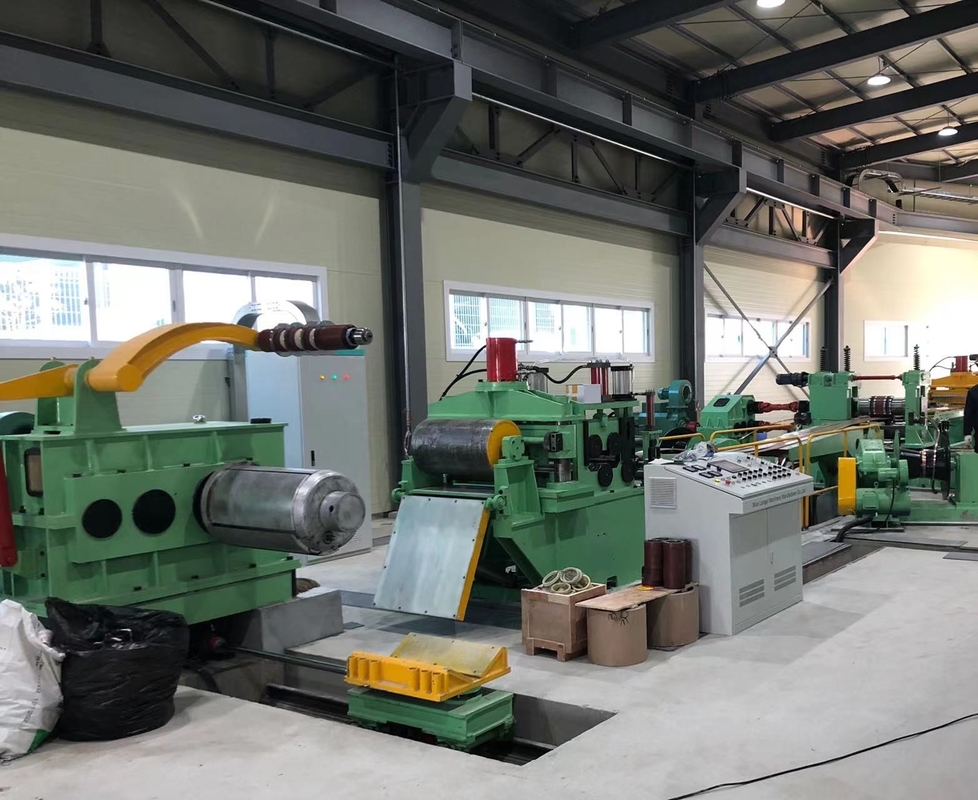

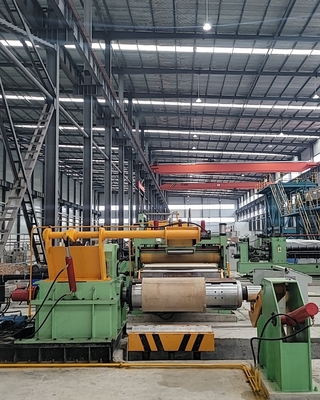

MA-500 Copper Strip Slitting Machine with stable speed or high speed for cutting strips
This line is used to split shearing of galvanized strip, copper, stainless steel strip and aluminum strip.
2. Technical parameter:
3. Specifications:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 50m/min |
| MA-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 80m/min |
| MA-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 100m/min |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form is just as reference according to general ranges, we always design and make lines according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
4. Our service
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
5. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
6. Main features:
