Product Details:
|
| Product Name: | Tube Mill | Raw Material: | Hot Rolling Or Cold Rolling Steel |
|---|---|---|---|
| Coil Width: | 60~160mm | Coil Outer Diameter: | Max. Φ1600mm |
| Coil Inner Diameter: | Φ508mm | Coil Weight: | Max.2.5T |
| Material Thickness: | 0.8~2.5mm For Round Pipes | Round Pipe Size: | Φ20mm~Φ50mm * 0.8mm~2.5mm |
| Square Pipe Size: | 16×16x1.5mm, 20x20x1.8mm, 25x25x2mm, 30x30x2mm, 40x40x2mm | Rectangle Pipe Size: | 25x50x2mm |
| Producing Speed: | 30~80m/min | Color: | Blue By Default |
| High Light: | 3.0mm hf welded tube mill,80m/min hf welded tube mill,10.0mm high frequency welded pipe mill |
||
1. Products name:
MA325 High Frequency Welding Pipe Line for producing different types of pipes
2. Introduction:

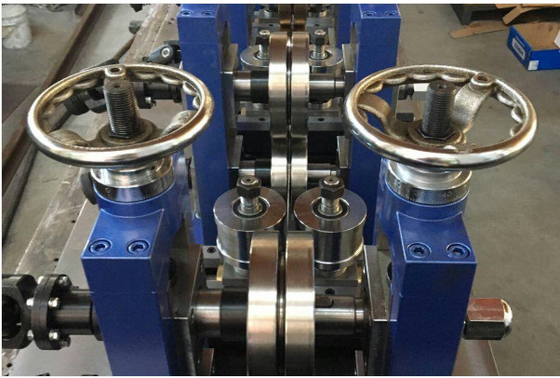

The welded pipe making machine, also called welding pipe making machine or pipe making machine, is used to produce different types of products, such as round types, square types, and rectangular types. The equipment uses roll pass design, so the production line can produce welded steel pipes which have the feature of good quality machining and precision assembling.
Our MAZS Company is expertise in producing the welded pipe making machine, therefore, different diameters and wall thicknesses are available. At the same time, we can design and produce products in accordance with clients' requirements.
Application:
The welded pipe production line is more suitable for producing straight welded pipes with frequency induction welder. Square or rectangular pipes can be welded by this machine too.
Due to different diameters of each tube, it can be divided in to the following types:
3. MA325 technical parameter:
Material to be processed: Carbon Steel, Cold Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon
Type of Production: Round Tubes, Square, Square and Rectangular Hollow Sections
Round Tube Outside Diameter: Min 114, Max 273mm
Square Hollow Section: Min 130 x130, Max 215 x 215 mm
Rectangular Hollow Section: Min 80x 100, Max140x 200 mm
Tube Thickness: Min 3.0mm Max 10.0 mm (X70≤8mm)
Forming Line Speed: Max 45m/min
(Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)
Tube Cut Length: Min 4 Max 12 meter
Length Accuracy: ± 3mm
