Product Details:
|
| Product Name: | High Speed Steel Strip Slitting Line And Without Burr | Material: | Carbon Steel, Color Steel, Galvanized Steel And Etc |
|---|---|---|---|
| Strip Thickness: | 0.6-5mm | Strip Width: | 500-1500mm |
| Inner Diameter Of Coils: | ≥Φ508mm | Max.outer Diameter Of Coils: | Φ2100mm |
| Steel Slitting Machine Max.coil Weight: | 35000kgs | Steel Slitter Shaft: | Φ280 X 1850mm |
| Slitting Motor: | 132KW DC Motor | Material Of Disc Cutter: | 6CrW2Si, HRC56°~58° |
| Color: | Customized | Power Supply: | 380V/50Hz/3Ph |
| High Light: | configuration customized steel strip slitting machine,0.6mm precision steel strip slitting machine,1500mm precision steel strip slitting machine |
||
1. Product name:
High speed Steel strip Slitting Line and without burr all Configuration can be customized
The steel coil slitting line, composed of uncoils, feeding, shearing and other equipment, is a production line. This kind of production line is able to cut the wide steel coil into the steel coil which has certain dimension in the direction of length.
2. Introduction:
Capacity of middle thick steel coil slitting line is mainly used to slit steel coils with thickness of 0.6~5 mm, 1~6 mm, 2-8mm or 3~10mm and for steel coils with width of 600~1600 mm, 800~1800mm or 800~2000mm into narrower baby coils. This steel slitter is widely used to provide steel strip coils for cold rolling mill, welding pipe mill, roll forming machine, etc.
This sheet metal slitting machine is suitable to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials.
3. The technical paramater:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-5 x 1500 | 0.6-5mm | 500-1500mm | Max 30T | Min. 40mm | 80m/min |
| MA-6 x 1600 | 1-6mm | 600-1600mm | Max 30T | Min. 50mm | 70m/min |
| MA-8 x 1800 | 2-8mm | 600-1800mm | Max 35T | Min 50mm | 80m/min |
| MA-10 x 2000 | 3-10mm | 800-2000mm | Max 35T | Min 60mm | 60m/min |
| Note: The data in the form is just as reference according to general ranges, we always design and make each steel slitting machine according to each customer’s specific requirements, so that each customer can buy his own well-content line from us. | |||||
4. Our service:
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
5. Main features:
5.1. We can make and design all kinds of specific machine according to customer's requests.
5.2. This is very perfect and durable equipment. We have more than 10 years experience.
5.3. This kind of machine has the best quality and the best price. It measures accurately and is easy to operate.
5.4. We can design and manufacture specific machines according to the customers' requirements and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5.5. Our products have been exported to many regions and won high reputation for high quality and reasonable price.

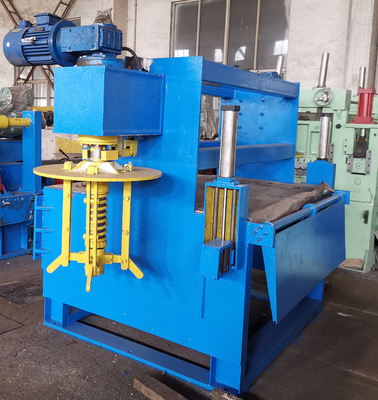

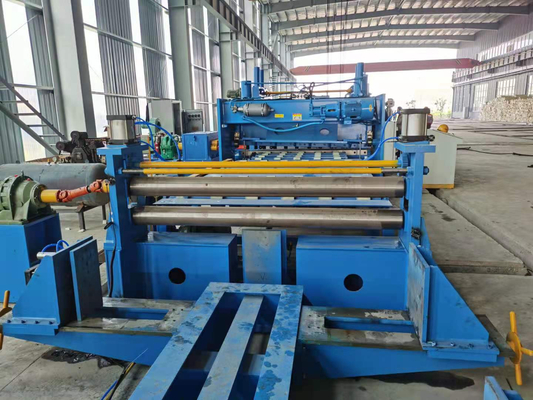

6. The machine reference photo:
