Product Details:
|
| Description: | Welded Tube Mill | Applicable Material: | Hot Rolled And Cold Rolled, Pre-galvanized-strip Steel |
|---|---|---|---|
| Round Pipe Diameter: | Φ33.4mm～Φ88.9mm | Round Pipe Thickness: | δ1.5mm～6.0mm |
| Pipe Length: | 10M～12M | Max. Coil Weight: | 10000 Kg |
| Welding Method: | High Frequency Induction Welding, 500KW | Total Power Consumption Of The Production Line: | 1120KW |
| High Light: | 165mm high frequency welded tube mill,1120kw high frequency welded tube mill,165mm welded pipe making machine |
||
1. Product Description:
MA165 Welded Pipe Making Machine High Frequency Welded Tube Mill Steel Pipe Mill
2. Introduction:
This equipment is specially used for producingΦ33.4-Φ88.9mm,δ1.5-6.0mm high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe. The composition of equipment is from uncoiler to computer fixed length-cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.
3. Work process:
Raw material (steel strip) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube
4. Configuration:
| Description | Optional |
| Decoiler | Double/Single-head/Manual/Pneumatic/Hydraulic |
| Shear &butt welding | Manual/Pneumatic welding |
| Accumulator | Vertical/Horizontal accumulator |
| Forming & sizing unit | DC motor/AC motor |
| Solid HF welder | Traditional solid/Integrated welder |
| Computer flying saw | Hot saw/Cold saw |
| Run-out table | Passively/Pneumatic turnover |
5. Technical Parameters:
| Model No. | MA114 | MA125 | MA165 | MA219 |
| Outer diameter | Φ40~114 MM | Φ50~130 MM | Φ76~165 MM | Φ89~219 MM |
| Wall thickness | 1.2~4.0 mm | 2.0~5.0 mm | 2.0~6.0 mm | 3.0~6.0 mm |
| Production speed | 0~70 m/min. | 0~60 m/min. | 0~50 m/min. | 0~50 m/min. |
| Driving motor power | 132 Kw*2 sets | 160 +200 Kw | 200 Kw*2 sets | 200 Kw*3 sets |
| HF welder power | 300 KW | 400 KW | 500 KW | 500 KW |

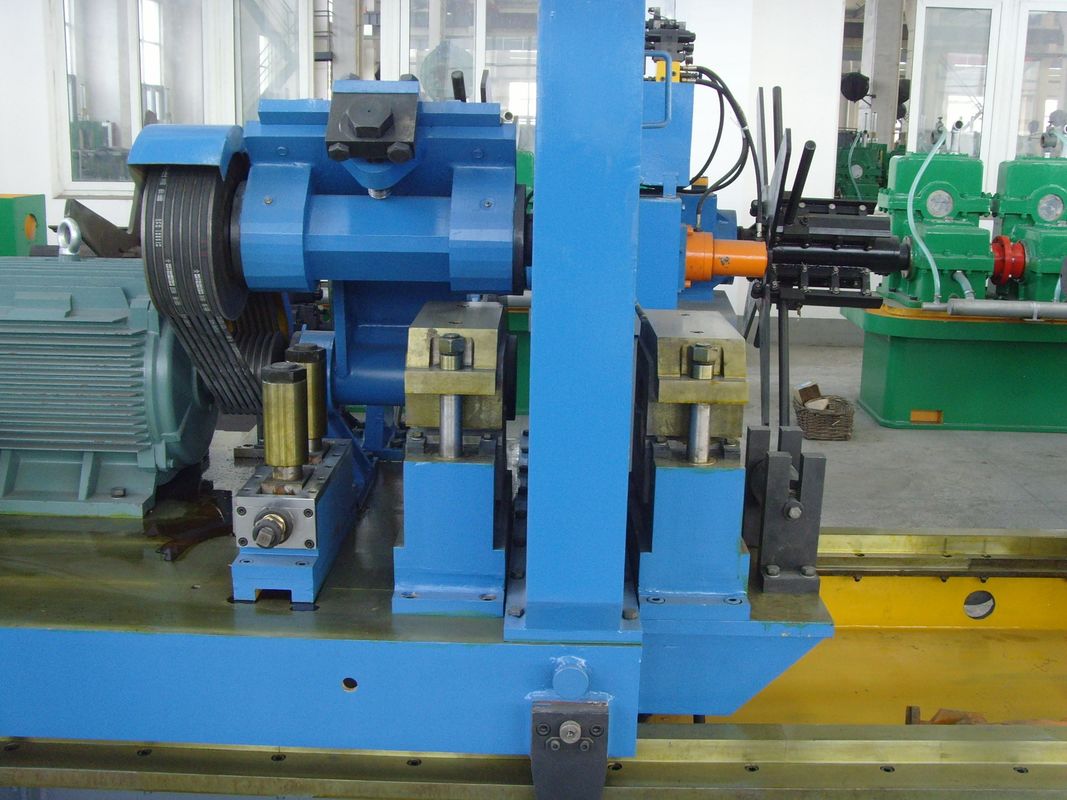

6. Photos for reference:
7. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
8. Warranty term: 12 months (excluding easy-broken parts)
9. Our service and features:
9.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
9.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
9.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
9.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
9.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
