Product Details:
|
| Product: | Steel Coil Slitting Machine | Material: | Cold Rolled Coil, Galvanized Coil, Hot-rolled Coil |
|---|---|---|---|
| Steel Coil Performance: | δs≤235MPa, δb≤345MPa | Max. Strip Width: | 1600mm |
| Inner Diameter Of Steel Coil: | φ510, φ610, φ760 | Outer Diameter Of Steel Coil: | Max. Φ2000mm |
| Linear Speed: | 0-70M/Min | Weight Of Steel Coil: | Max. 25T |
| High Light: | 1600mm coil slitting machine,galvanized hot rolled coil slitting machine,1600mm coil slitting line |
||
1. Product description:
MA1-4X1600 Slitting Machine cold rolled coil galvanized coil hot-rolled coil
MA1-4X1600 Slitting Machine is mainly used for the cold rolled, coil galvanized and coil hot-rolled coil.
2. Specifications:
| Material of coils |
cold rolled, coil galvanized and coil hot-rolled coil |
| Strip thickness |
1-4mm |
|
Max. Strip width |
1600mm |
|
Inner diameter of coils |
φ510, φ610, φ760mm |
|
Outer diameter of coils |
Max. Φ2000mm |
|
Max. Coil weight |
25T |
|
Cutter shaft diameter |
Φ220 |
|
Effective width of cutter shaft |
1700mm |
|
Slitting capacity |
≤15, with plate thickness of 1mm ≤8, with plate thickness of 4mm |
|
Width tolerance |
±0.10mm |
|
Power |
380V/50Hz/3Ph |
|
Linear speed |
60-120M/Min. |
3. Configurations:
It consists of following parts:
■ Coil car
■ Three-step expansion decoiler
■ Material uncoiling device
■ Pinch, shearing
■ Transition platform
■ Guiding centering device
■ Slitting machine
■ Side scrap device
■ Storage looper
■ Five-roller tension station
■ Hydraulic expandable recoiling
■ Discharge coil car
■ Hydraulic control system
■ Electrical control system

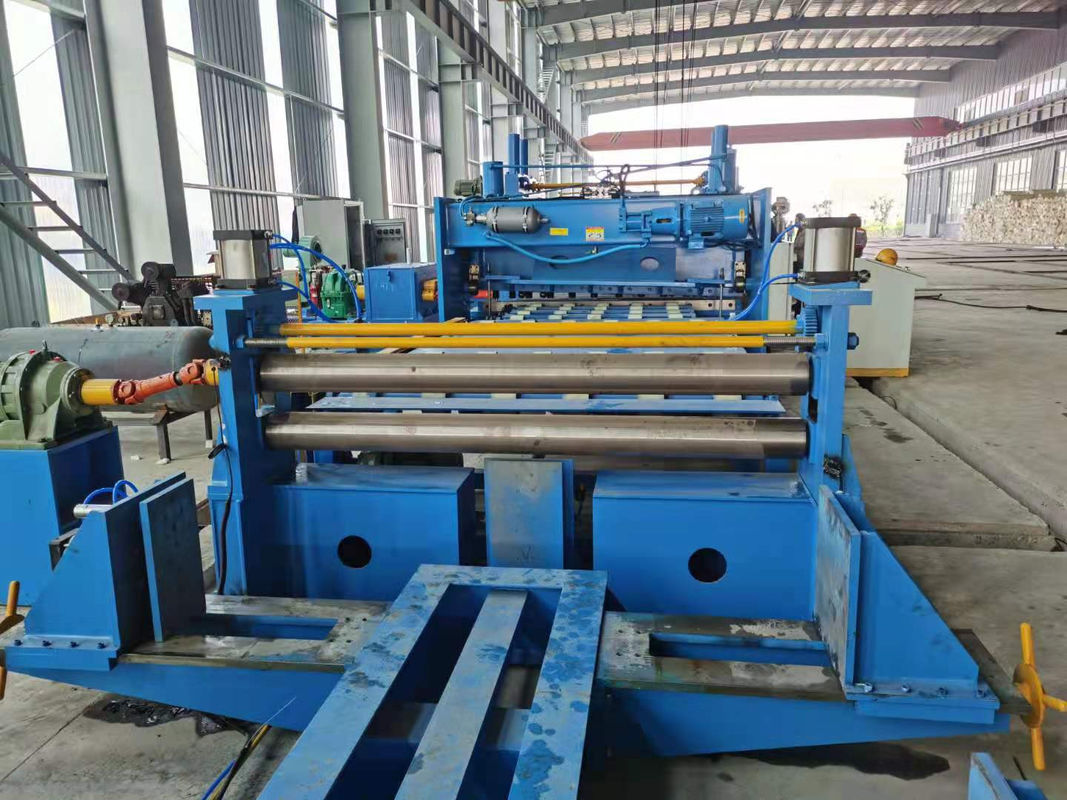

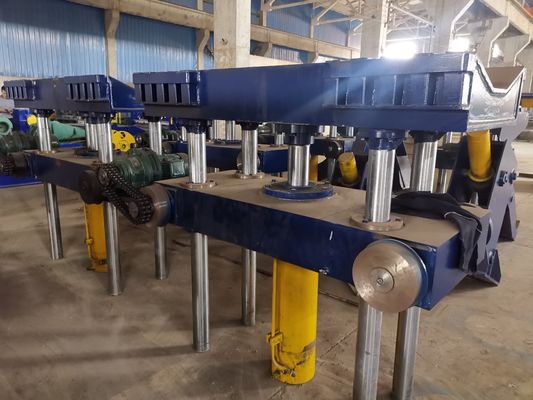

4. Machine photo for reference:
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
