Product Details:
|
| Product: | Steel Coil Slitting | Material: | Hot Rolled, Cold Rolled, Galvanized Coil |
|---|---|---|---|
| Strip Thickness: | 1.5-5mm | Max. Strip Width: | 1000-1500mm |
| Inner Diameter Of Steel Coil: | φ508-φ610-φ760 | Outer Diameter Of Steel Coil: | Max. φ2000mm |
| Slitting Speed: | 0-100M/Min, Continuously | Weight Of Steel Coil: | Max. 25T |
| Highlight: | 1.5-5mm Steel Coil Slitting Machine,1500mm Steel Coil Slitting Machine,100M/Min metal coil slitter |
||
1. Product description: MA1.5-5X1500 Slitting Line
MA1.5-5X1500 Slitting Line is used for decoiling, slitting and recoiling of hot-rolled steel coils.
2. Specifications:
| NO. | Name | Parameters |
| 1 |
Applicable material |
hot rolled, cold rolled, galvanized coil |
| 2 |
Thickness of material |
1.5-5mm |
| 3 |
Material width |
Max. 1000-1500mm |
| 4 |
Inner diameter of steel coil |
φ508-φ610-φ760 |
| 5 |
Outer diameter of steel coil |
Max. φ2000mm |
| 6 |
Weight of steel coil |
≤1400 mm |
| 7 | Weight |
Max. 25T |
| 8 |
Thickness of finished product |
1.5-5 mm |
| 9 |
Inner diameter of finished coil |
Φ508 mm |
| 10 |
Outer diameter of finished coil |
≤φ2000 mm |
| 11 |
Slitting number |
≤8 3.5-5mm ≤15 1.5-3.0 mm |
| 12 |
Width tolerance of finished product |
±0.2mm |
| 13 |
Min. slitting width |
30mm |
| 14 |
Slitting speed |
0-100M/Min, Continuously |
| 15 |
Cutter shaft diameter |
Φ250mm |
3. Configurations:
| ■ Coil car | ■ Three-step expansion decoiler |
| ■ Material uncoiling device | ■ Pinch, levelling, shearing |
| ■ Roller table | ■ Guiding centering device |
| ■ Slitting machine | ■ Side scrap device |
| ■ Storage looper | ■ Tension station |
| ■ Hydraulic expandable recoiler | ■ Discharge coil car |
| ■ Hydraulic control system | ■ Electrical control system |
4. Process Flow:
V-shaped preparation table - coil car - decoiler - material uncoiling device - pinch and leveler - hydraulic shearing machine - transition roller table- guiding centering device - slitting machine - side scrap device - storage pit - 5-roller tension device - recoiler - discharge coil car

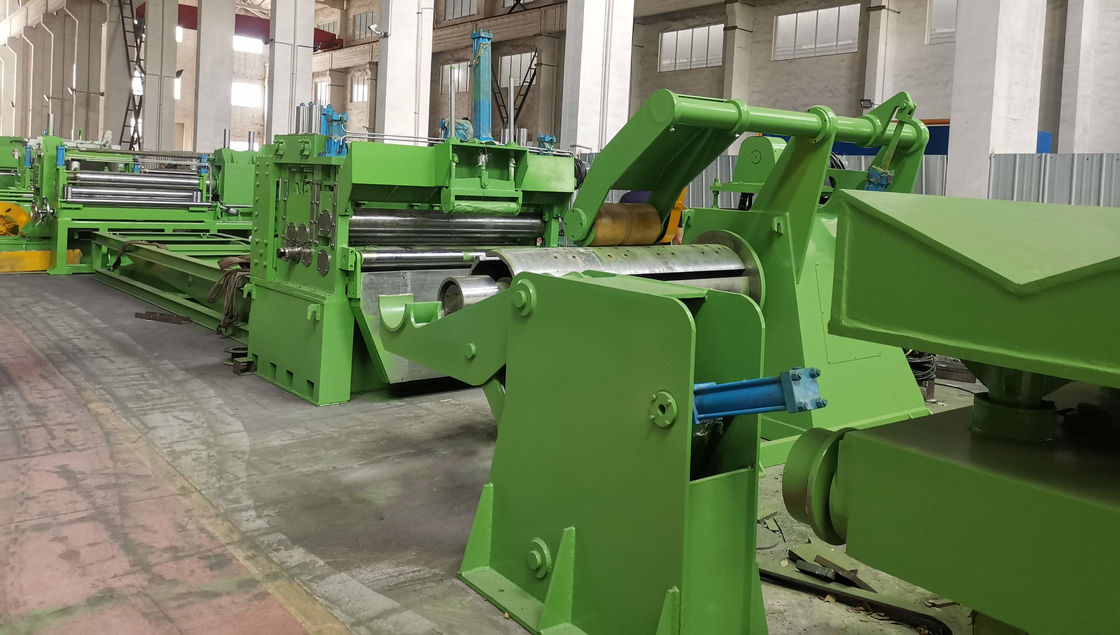

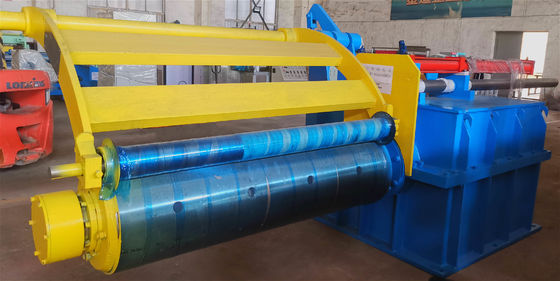

5. Machine photo for reference:
6. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
7. Warranty term: 12 months (excluding easy-broken parts)
8. Our service and features:
8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
