Product Details:
|
| Product: | Slitting Machine | Material: | Cold Rolling, Galvanized Coil |
|---|---|---|---|
| Thickness Of Material: | 0.5-3mm | Material Width: | Max. 1600mm |
| Inner Diameter Of Steel Coil: | φ508, φ610 | Outer Diameter Of Steel Coil: | Max. φ1700mm |
| Finished Thickness: | 0.5-3mm | Finished Coil I.D.: | Φ508mm |
| Slitting Number: | 8 Pcs, As Required | Weight Of Steel Coil: | Max. 15T |
| High Light: | 150m/min high speed slitting machine,0.5-3mm high speed slitting machine,15T coil slitting line |
||
1. Product description:
MA 0.5-3X1600 High-speedSteel Coil Slitting Machine
The production line is used to divide coils of different specifications into strips of different widths along the length direction and wind them up. The products can be used for rolling, welded pipe, cold bending, stamping and other materials.
2. Specifications:
2.1 Incoming materials:
| Applicable material | Cold rolling, galvanized coil |
| Material quality | domestic certified steel or international standard steel |
| Steel coil performance | δs≤235MPa,δb≤345MPa |
| Thickness of material | 0.5-3mm |
| Material width | 1600mm(Max) |
| Inner diameter of steel coil | φ508, φ610 (for φ610 will be supplied with 2 pcs of enlarging circles) |
| Outer diameter of steel coil | φ1700mm(Max) |
| Weight of steel coil | 15T(Max) |
2.2 Output materials:
| 1 |
Finished thickness |
mm | 0.5-3 | |
| 2 |
Finished coil I.D. |
mm | Φ508 | |
| 3 |
Finished coil O.D. |
mm | ≤φ1700 | |
| 4 |
Weight of finished coil |
Tons | ≤15 (up to 18 tons) | |
| 5 |
Slitting number |
pcs | 8 | 3mm |
| 6 |
Width tolerance of finished product |
mm | ±0.10mm | |
| 7 |
Min. slitting width |
mm | 20 | |
| 8 |
Slitting speed |
m/min | 150M/Min |
Continuously adjustable |
| 9 |
Slitting Shaft diameter |
mm | d | Φ200 |
| 10 |
Effective width of blade shaft |
mm | ≥B | 1750mm |
3. Configurations:
It consists of following parts:

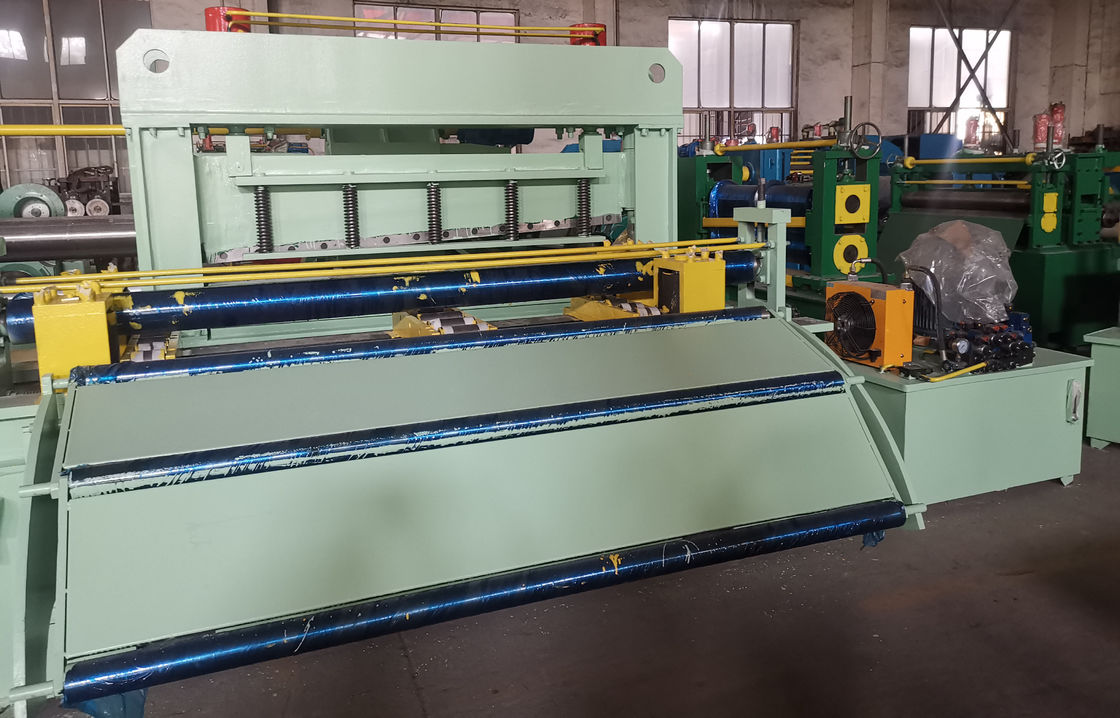

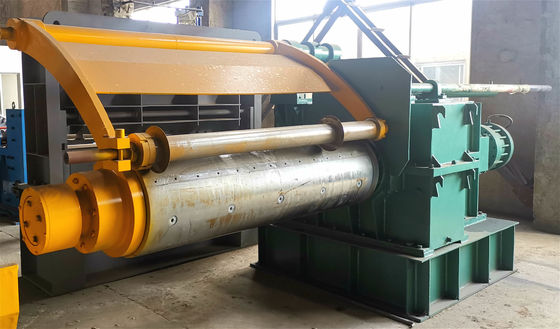

4. Machine photo for reference:
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
