Product Details:
|
| Description: | Rolling Mill Machine | Material: | Carbon Steel |
|---|---|---|---|
| Input Thickness (mm): | ≤4 | Output Thickness (mm): | 0.15 |
| Rolling Speed (m/min): | 12 | Main Motor (KW): | 22 |
| Press-down Motor (KW): | 1.5 | Weight (T): | 4.8 |
| Highlight: | 12m/min 2 high cold rolling mill,Carbon Steel 2 high cold rolling mill,2hi metal cold rolling mill |
||
1. Description:

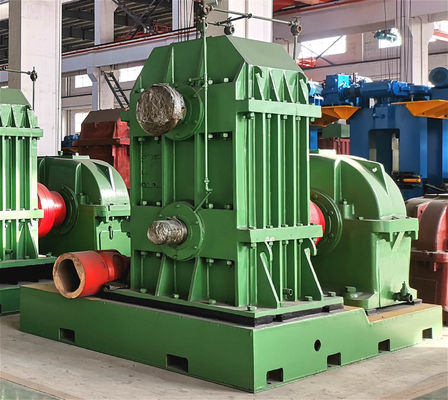

MAΦ120 × 160 Two High Steel Cold Rolling Mill
2. Introduction:
Two high rolling mill is composed of two horizontal rolls arranged up and down in the same vertical plane. It is mainly used in metal rolling process.
3. Features:
4. Technical Parameters:
| Type | Φ120 × 160 | Φ150 × 220 | Φ175 × 400 | Φ250 × 500 | Φ320 × 600 | Φ400 × 800 | Φ500 × 1000 |
| Input thickness (mm) | ≤4 | ≤4 | ≤4 | ≤8 | ≤10 | ≤20 | ≤30 |
| Output thickness (mm) | 0.15 | ≥0.35 | ≥0.35 | ≥0.4 | ≥0.4 | ≥0.5 | ≥0.6 |
| Strip (mm) | 10-100 | ≤150 | 300 | 370 | 450 | ≤600 | 800 |
| Rolling pressure (T) | 65 | 100 | 100 | 120 | 150 | 160 | 260 |
| Rolling speed (m/min) | 12 | 13 | 13 | 13 | 13-15 | 13-15 | 15-25 |
| Main motor (KW) | 22 | 30 | 37 | 55 | 75 | 155 | 160 |
| Press-down motor (KW) | 1.5 | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 |
| Press-down speed (mm/s) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.12 | 0.12 |
| Speed reducer | JZQ550 | JZQ750 | JZQ750 | JZQ750 | JZQ1000 | JZQ115 | JZQ130 |
| Weight (T) | 4.8 | 5.8 | 7 | 12.8 | 19 | 40 | 50 |
Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
