Product Details:
|
| Product Name: | Steel Strip Slitting Line With Stably Speed And Without Burr All Configuration Can Be Customized | Material: | Carbon Steel, Color Steel, Galvanized Steel And Etc |
|---|---|---|---|
| Strip Thickness: | (2~8) Mm | Strip Width: | 600~1800 Mm |
| Inner Diameter Of Coils: | ≥Φ508mm | Max.outer Diameter Of Coils: | Φ2100mm |
| Steel Slitting Machine Max.coil Weight: | 35000kgs | Steel Slitter Shaft: | Φ280 X 1850mm |
| Slitting Motor: | 132KW DC Motor | Material Of Disc Cutter: | 6CrW2Si, HRC56°~58° |
| High Light: | high precision slitting machine 132KW,2-8mm high precision slitting machine,Combined slitting cutting machine |
||
1.Product name:
Combined Slitting & cutting Line with high speed all Configuration can be customized auto precision slitting machine
2.The technical paramater:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-5 x 1500 | 0.6-5mm | 500-1500mm | Max 30T | Min. 40mm | 80m/min |
| MA-6 x 1600 | 1-6mm | 600-1600mm | Max 30T | Min. 50mm | 70m/min |
| MA-8 x 1800 | 2-8mm | 600-1800mm | Max 35T | Min 50mm | 80m/min |
| MA-10 x 2000 | 3-10mm | 800-2000mm | Max 35T | Min 60mm | 60m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each steel slitting machine according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
3. Our service:
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
4. Main features:
4.1. We can make and design all kinds of special machine according to customer's requests.
4.2. This is a very perfect and durable equipment. We have more than 10 years experiences.
4.3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
4.5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

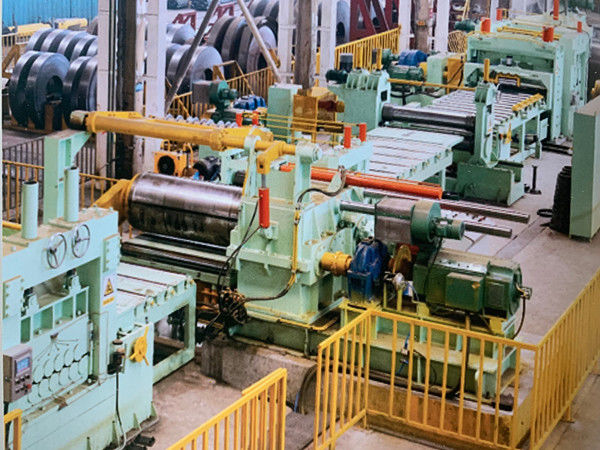

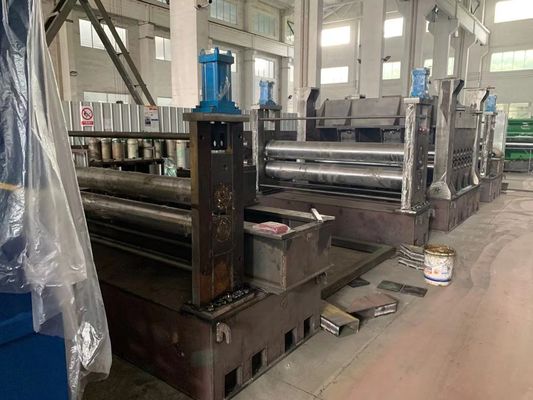

5.The machine reference photo:
