Product Details:
|
| Material Of Coils: | HRC, CRC, GI, PPGI, ST37, ST52..... | Voltage: | 380V 50Hz 3phases Or Order By The User |
|---|---|---|---|
| Quality Guarantee: | One Year After Shipping. | Machine Color: | It’s Order By The User Or By Our Standard |
| Packing: | Machine Will Be Fixed Inside Container By Steel Wire(Export Standard Sea Package) | After Service: | Avalible On Any Local China Working Time |
| Highlight: | HRC Steel Coil Slitting Machine,CRC Steel Coil Slitting Machine,0.4-4mm high precision slitting machine |
||

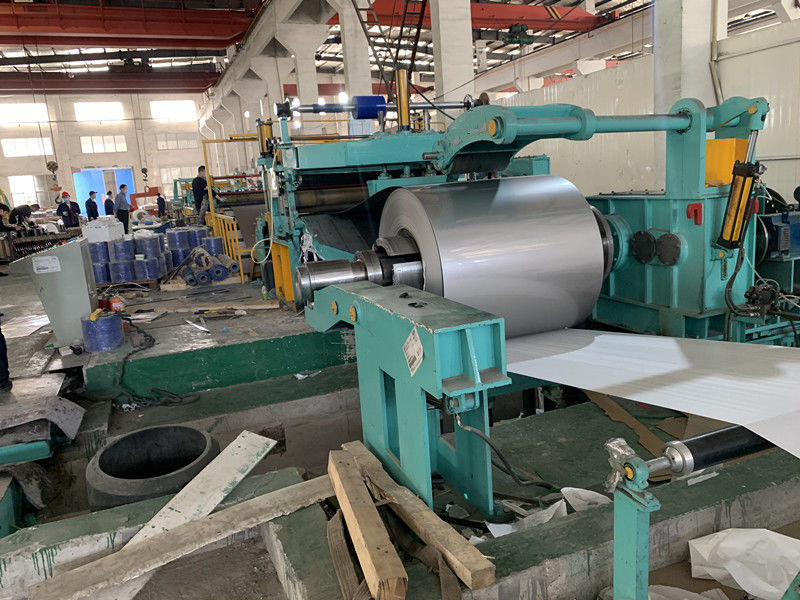

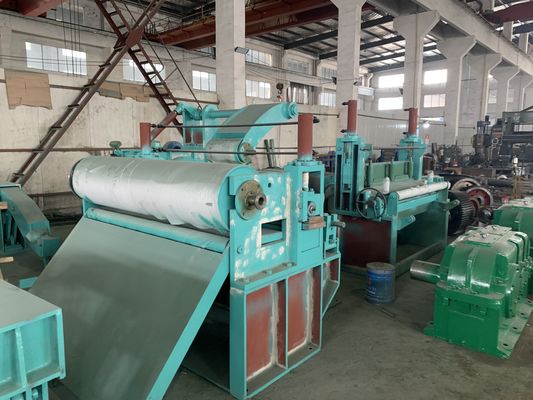

High slitting accuracy steel coil slitting line or can be orderd by user rewinding line with high speed uncoiling
Thin sheet slitting line is suitable for coil strip thickness (0.2~1) mm, (0.3-2) mm, (0.3-3) mm and (0.4-4)mm; while strip width is changeable: 600mm. 1000mm, 1250mm, 1600mm, 1800mm and so on.
1. Detailed technical data for our think Slitting lines:
MA-(0.4～4)×1600mm Slitting Line, domestic
Material of coils: HRC, CRC, GI, PPGI, ST37, ST52.....
Strip thickness: (0.4-4) mm
Max. Strip width: 1600mm
Coil ID: ≥Φ508mm
Coil OD: Φ2000mm
Max. Coil weight: 30000Kgs
Slitter motor: 75KW DC motor
Slitter shaft: Ф220 x 1650mm
Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
Separating disc: ID85 x OD210mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
Recoiler block: Ф508 x 1700mm
Recoiler motor: 90KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 80m/min, adjustable.
2. Specification form of Metal Coil Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 50m/min |
| MA-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 80m/min |
| MA-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 100m/min |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
3. What service we can get from your company?
- VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.
We are 24/7 online available for you to answer your questions and solve your problems.
4. Quality Inspection
The machines of our company have many certificates like ISO 9001, CE, SGS, etc.
Before the shipping, we have a series of quality check system, includes 3 times of inspection for every production procedure. First inspection needs the workers to check and sign on the test report. Second inspection involves department leaders to check and sign on the test report. The Third inspection needs professional inspector to check and ensure the machines are qualified.
We also give 12 month warranty time to the customer.
