Product Details:
|
| Description Of Goods: | Rolling Mil | Input Thickness (mm): | ≤4 |
|---|---|---|---|
| Output Thickness (mm): | 0.15 | Strip (mm): | 10-100 |
| Rolling Pressure (T): | 65 | Rolling Speed (m/min): | 12 |
| Main Motor (KW): | 22 | ||
| High Light: | cold rolling mill machine 2Hi,Coil cold rolling mill machine,2Hi aluminum cold rolling mill |
||
1. Description of goods:

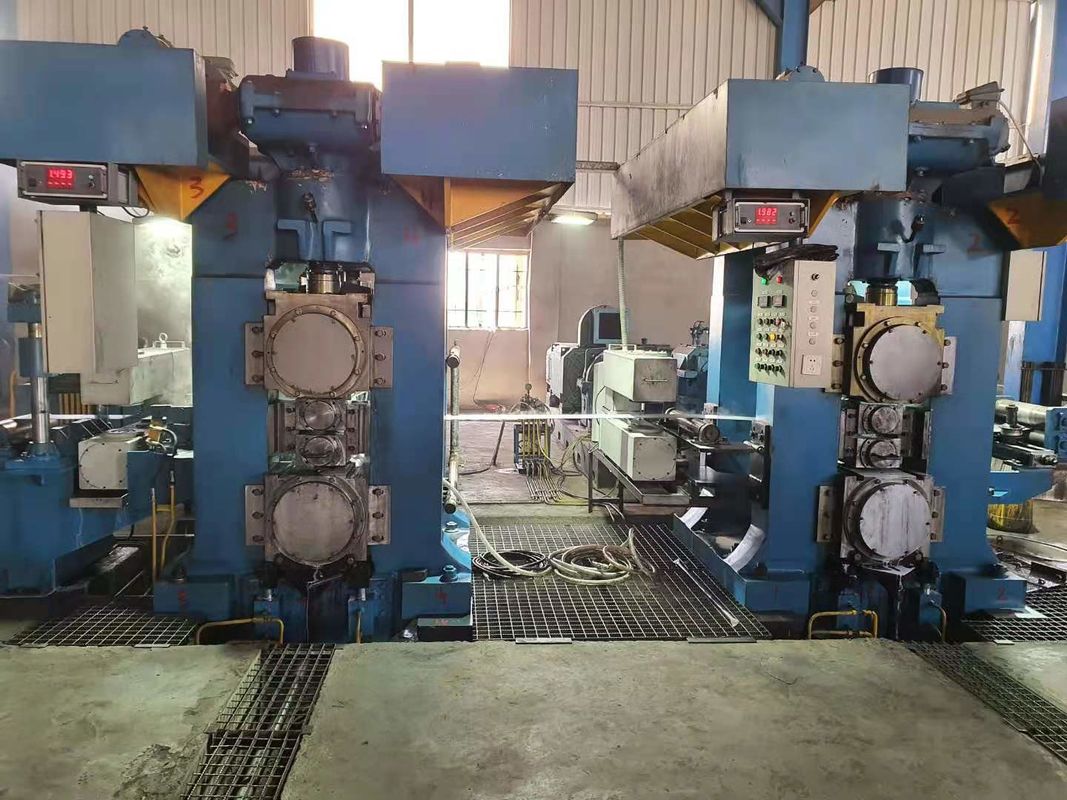

MA Φ120 × 160 Steel cold Rolling mill equipped with hydraulic expansion cylinder Coiler two roller mill
2. Introduction:
The 2-Hi cold rolling mill, one of metal coil cold rolling mill, is made from good quality raw material. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill. Due to different numbers of rollers, the metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and 12 Hi AGC.
3. Features:
1. The 2-Hi cold rolling mill is a kind of portable type.
2. One stand and two frames are made from fabricated steel plates.
3. The number 2 Rolls on this cold rolling mill are made of chilled material.
4. It is equipped with heavy duty reduction gear.
5. The screw down system is manual.
6. We adopt one number C.I. casting flywheels.
4. Technical Parameters of 2-Hi Cold Rolling Mill:
| Type | Φ120 × 160 | Φ150 × 220 | Φ175 × 400 | Φ250 × 500 | Φ320 × 600 | Φ400 × 800 | Φ500 × 1000 |
| Input thickness (mm) | ≤4 | ≤4 | ≤4 | ≤8 | ≤10 | ≤20 | ≤30 |
| Output thickness (mm) | 0.15 | ≥0.35 | ≥0.35 | ≥0.4 | ≥0.4 | ≥0.5 | ≥0.6 |
| Strip (mm) | 10-100 | ≤150 | 300 | 370 | 450 | ≤600 | 800 |
| Rolling pressure (T) | 65 | 100 | 100 | 120 | 150 | 160 | 260 |
| Rolling speed (m/min) | 12 | 13 | 13 | 13 | 13-15 | 13-15 | 15-25 |
| Main motor (KW) | 22 | 30 | 37 | 55 | 75 | 155 | 160 |
| Press-down motor (KW) | 1.5 | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 |
| Press-down speed (mm/s) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.12 | 0.12 |
| Speed reducer | JZQ550 | JZQ750 | JZQ750 | JZQ750 | JZQ1000 | JZQ115 | JZQ130 |
| Weight (T) | 4.8 | 5.8 | 7 | 12.8 | 19 | 40 | 50 |
