Product Details:
|
| Description Of Goods: | Stainless Steel Cold Rolling Mill | MA Φ320 × 600 Steel Cold Rolling Mill Equipped With Heavy Duty Reduction Gear Hydraulic Expansion Cy: | ≤10 |
|---|---|---|---|
| Output Thickness (mm): | ≥0.4 | Strip (mm): | 450 |
| Rolling Pressure (T): | 150 | Rolling Speed (m/min): | 13-15 |
| Color: | As Our Standard Or Order By User | Voltage: | 380V 50Hz 3phases Or Order By The User |
| High Light: | 2hi Steel Cold Rolling Mill,Stainless Steel Cold Rolling Mill,ISO 2 high cold rolling mill |
||
1. Description of goods:

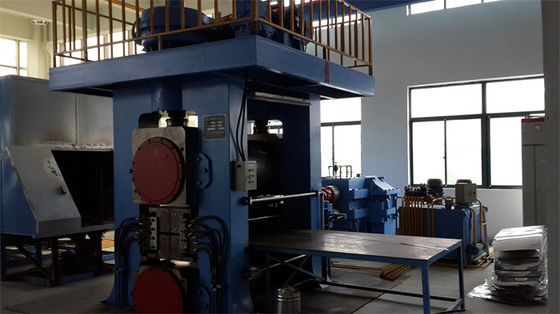

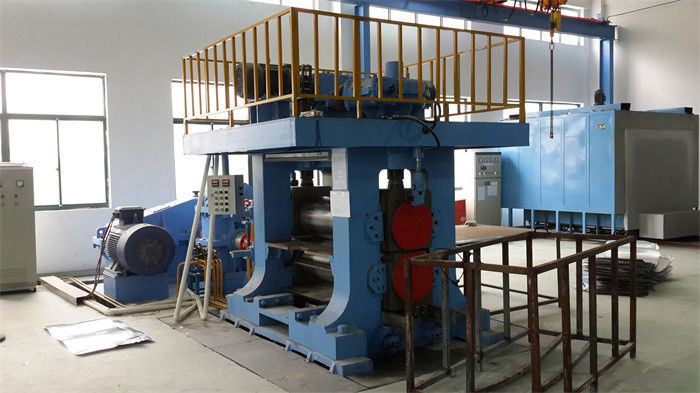

MA Φ320 × 600 Steel cold Rolling mill equipped with heavy duty reduction gear hydraulic expansion cylinder for Coiler
2. Introduction:
The 2-Hi cold rolling mill, one of metal coil cold rolling mill, is made from good quality raw material. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill. Due to different numbers of rollers, the metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and 12 Hi AGC.
3. Rolling Conditions:
Material: carbon steel
Input width: ≤150mm, thickness: 2.75mm
Output width: ≤150mm, thickness≥: 0.8mm
Rolling force: p＝60t
Rolling speed: v≤13m/min
4. Technical Parameters of 2-Hi Cold Rolling Mill:
| Type | Φ120 × 160 | Φ150 × 220 | Φ175 × 400 | Φ250 × 500 | Φ320 × 600 | Φ400 × 800 | Φ500 × 1000 |
| Input thickness (mm) | ≤4 | ≤4 | ≤4 | ≤8 | ≤10 | ≤20 | ≤30 |
| Output thickness (mm) | 0.15 | ≥0.35 | ≥0.35 | ≥0.4 | ≥0.4 | ≥0.5 | ≥0.6 |
| Strip (mm) | 10-100 | ≤150 | 300 | 370 | 450 | ≤600 | 800 |
| Rolling pressure (T) | 65 | 100 | 100 | 120 | 150 | 160 | 260 |
| Rolling speed (m/min) | 12 | 13 | 13 | 13 | 13-15 | 13-15 | 15-25 |
| Main motor (KW) | 22 | 30 | 37 | 55 | 75 | 155 | 160 |
| Press-down motor (KW) | 1.5 | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 |
| Press-down speed (mm/s) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.12 | 0.12 |
| Speed reducer | JZQ550 | JZQ750 | JZQ750 | JZQ750 | JZQ1000 | JZQ115 | JZQ130 |
| Weight (T) | 4.8 | 5.8 | 7 | 12.8 | 19 | 40 | 50 |
