Product Details:
|
| Production Description: | Cold Rolling Mill | Raw Material: | Stainless Steel 201, 304, 430 |
|---|---|---|---|
| Input Thickness: | 2.5mm | Output Thickness: | Min. 0.1mm |
| Rolling Pressure: | P≤6000KN | Main Motor: | DC 550KW |
| Coiling Strength: | T≤120KN | Rolling Speed: | V≤100m/min |
| High Light: | Six Roller Reversing Cold Rolling Mill,SS304 Reversing Cold Rolling Mill,550KW reversible cold rolling mill |
||
1. Product description

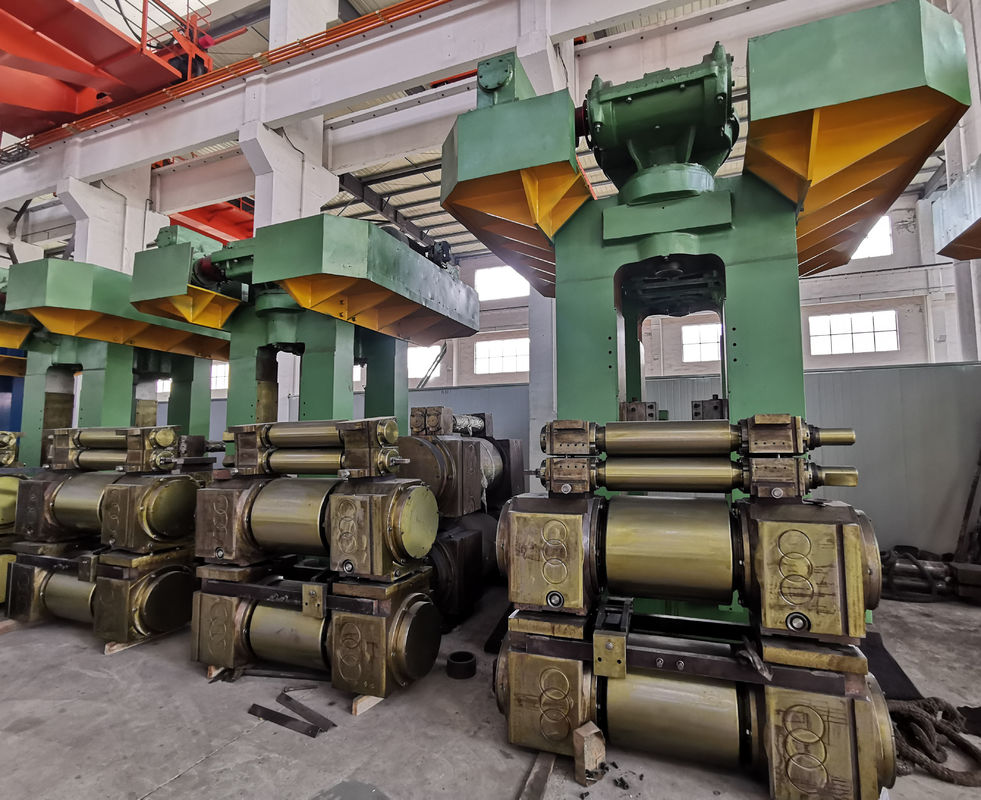

MA Six roller Reversible Cold Rolling Mill Stainless steel Electric motor press-down
2. Introduction
The six-high cold rolling mill is more suitable for carbon steel, stainless steel and special steel coil rolling; even the steel with large width and small finished thickness is available too.
3. Process flow: (for reference)
Decoiler with coil loading car → Coil end straightener → Left recoiler with coil discharging car → Work platform before rolling mill → 6-hi cold rolling mill → Work platform after rolling mill → Right recoiler with coil discharging car
4. Main parameters
5. Technical Parameters (options):
| Type | Φ150/Φ175/Φ460×450 | Φ150/Φ175/Φ500×500 | Φ165/Φ200/Φ630×650 | Φ165/Φ250/Φ680×800 | ||||
| Input thickness(mm) | 1.0-2.5 | 1.0-2.5 | 1.0-3.5 | 1.0-3.5 | ||||
| Finished thickness(mm) | 0.15-1.2 | 0.15-1.5 | 0.18-2.0 | 0.2-2.0 | ||||
| Coil (mm) | 250-350 | 300-400 | 400-500 | 550-700 | ||||
| Drive | Work roller | Work roller | Work roller | Work roller | ||||
| Rolling force(KN) | 2800 | 3500 | 5000 | 5500 | ||||
| Press-down | motor | hydraulic | motor | hydraulic | motor | hydraulic | motor | hydraulic |
| Rolling speed(m/s) | 3.5 | 4-6.5 | 3.5 | 4-8 | 3.5 | 4-5 | 3.5 | 4-5 |
| Rolling material | Normal carbon steel | Normal carbon steel | Stainless steel or carbon steel | Stainless steel | ||||
| Type | Φ170/Φ300/Φ800×900 | Φ300/Φ370/Φ950×1050 | Φ330/Φ370/Φ1050×1250 | Φ400/Φ450/Φ1250×1450 | |
| Input thickness(mm) | 2.0-4.0 | 2.0-4.0 | 2.0-4.0 | 2.0-4.0 | |
| Finished thickness(mm) | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 | 0.2-2.0 | |
| Coil (mm) | 700-900 | 650-950 | 700-1100 | 900-1250 | |
| Drive | Work roller | Work roller | Work roller | Work roller | |
| Rolling force(KN) | 6500 | 10000 | 12000 | 15000 | |
| Press-down | motor | hydraulic | hydraulic | hydraulic | hydraulic |
| Rolling speed(m/s) | 3.5 | 4-5 | 10 | 8-12 | 8-16 |
| Rolling material | carbon steel or stainless steel | Normal carbon steel | Normal carbon steel | Normal carbon steel | |
Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.
6. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
7. Warranty term: 12 months (excluding easy-broken parts)
8. Our service and features:
8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
