Product Details:
|
| Description Of Goods: | MA-(5-20)×2000mm Sheet Slitting Line High Speed Hydraulic Decoiler With Three Steps By PLC. | Material Of Coils: | HR/CR Carbon Steel Such As Q235, Galvanized Plate, Colored Steel Plate Etc |
|---|---|---|---|
| Metal Coil Slitter Strip Thickness: | (5~20) Mm | Strip Width: | 800~2000mm |
| Max.coil Weight: | 40000kgs | Voltage: | 380V 50Hz 3phases Or Order By The User |
| Quality Guarantee: | One Year After Shipping | Color: | As Our Standard Or Order By User |
| Highlight: | ISO sheet metal slitter machine,5-20mm sheet metal slitter machine,2000mm high speed slitting line |
||
1. Description of goods:
MA-(5-20)×2000mm Sheet Slitting Line high speed hydraulic decoiler with three steps by PLC.
2. Introduction:

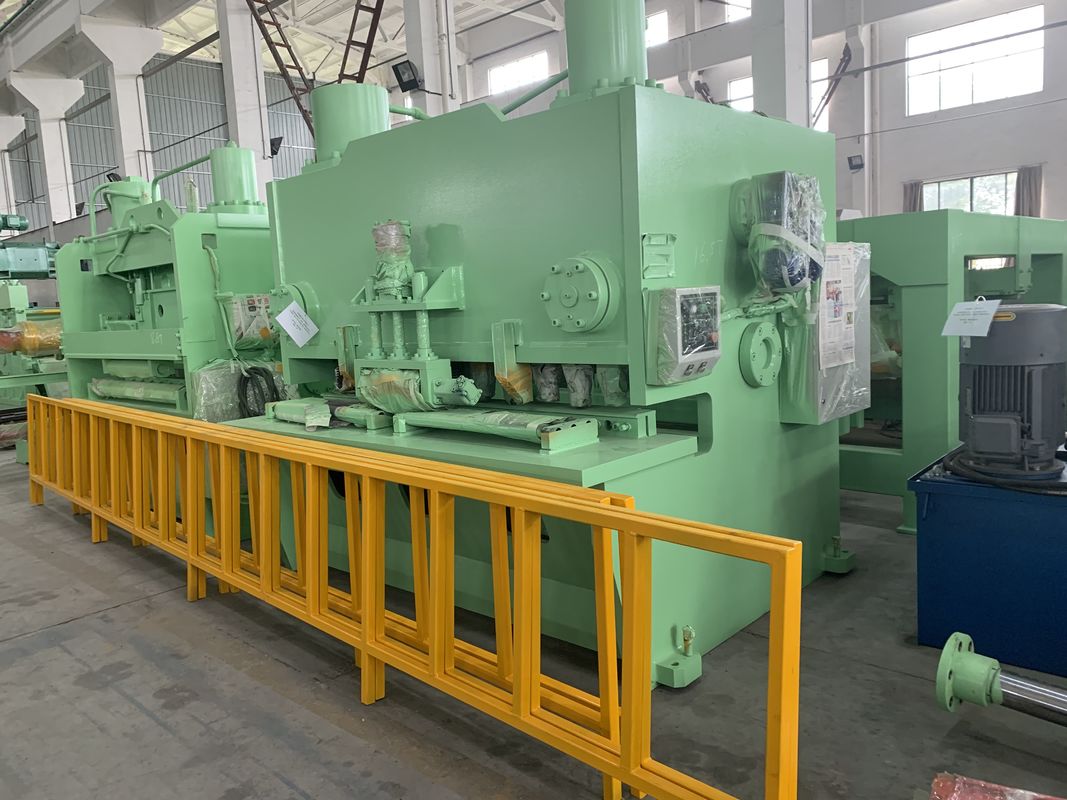

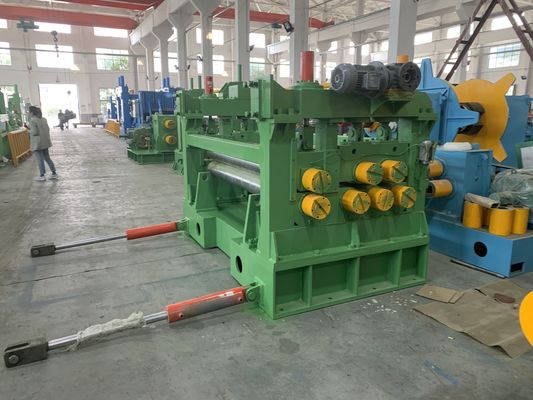

This thick plate slitting line, also called metal coil slitter, is able to slit thick steel master coil into small baby coils. The thick coil slitting line is composed of: coil-loading car, double mandrel big-load uncoiler, portal style coil-head guide, press and shovel equipment, double roller pinching feeder, five-roller leveler, end-cutter, Roll table, Central aligner, Disc slitter, scrap winder, hole accumulator, pre-separator& tensioner, Portal style coils-separator and presser, recoiler, coil unloading car, hydraulic control, and electric control.
Capacity of different models of thick sheet slitting lines (metal coil slitter):
Strip thickness: (3~12) mm, (4-16)mm, (5~20) mm;
Strip width: 500-1800mm, 800~2000mm or 1000~2200mm.
3. Techncial parameter
Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc.
Metal Coil Slitter Strip thickness: (5~20) mm.
Strip width: 800~2000mm.
Max.coil weight: 40000kgs.
Diameter of leveling rollers & tensioning roller: Φ260.
Metal Coil Slitter Diameter of slitter shaft: Φ420.
Coil Slitting Machine Disc cutters: 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm.
Diameter of recoiler block: Φ800mm.
Separating discs: 65Mn, OD250 x ID110 x T10/20mm.
DC motors for slitter and recoiler: 280KW, 315KW.
Coil Slitting Machine Slitting speed: (0~20) m/min, adjustable.
4. Specifications of Metal Coil Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-12 x 1800 | 3-12mm | 600-1800mm | Max 35T | Min. 60mm | 30m/min |
| MA-16 x 2200 | 4-16mm | 800-2200mm | Max 40T | Min. 100mm | 30m/min |
| MA-20x 2000 | 5-20mm | 800-2000mm | Max 40T | Min 100mm | 20m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer’s specific requirements, so each customer can buy his own well-content coil slitting machine from us. | |||||
5. Our service
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
6. Main features
1. We can make and design all kinds of special machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 10 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
