Product Details:
|
| Description Of Goods: | Thick Sheet Slitting Line With Stably Speed And Controled By PLC Five Roller Leveling With Heavy Type Hydraulic Decoiler | Strip Thickness: | 3~12mm |
|---|---|---|---|
| Strip Width: | 500~1800mm | Max.coil Weight:: | 35000kg |
| Voltage:: | 380V 50Hz 3phases | Quality Guarantee: | One Year |
| Highlight: | 380V Steel Sheet Slitting Machine,3-12mm Steel Sheet Slitting Machine,sheet slitting line machine |
||
1. Description of goods:

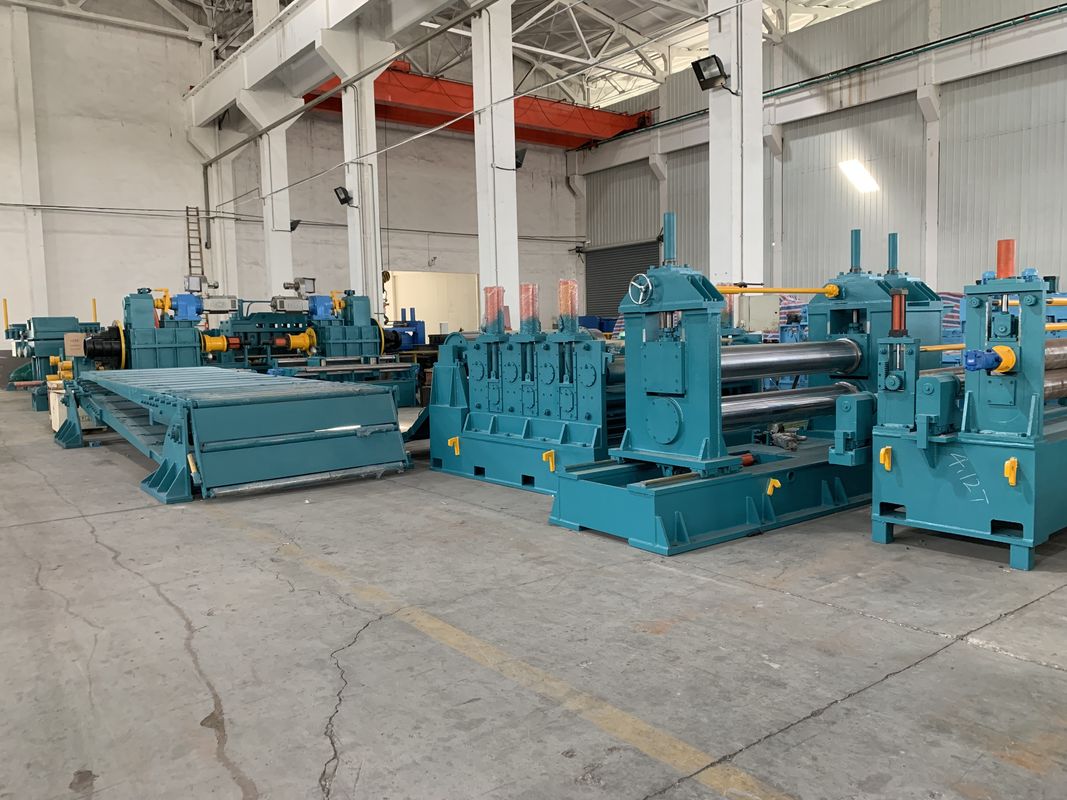

Thick Sheet Slitting Line with stably speed and controled by PLC five roller leveling with heavy type hydraulic decoiler
2. Detail specification of Sheet Slitting Machine:
MA-(3-12)×1800mm Sheet Slitting Line
Material of coils: HR/CR carbon steel, galvanized plate, colored steel plate etc.
Metal Coil Slitter Strip thickness: (3~12) mm
Coil Slitting Machine Strip width: 500~1800mm
Max.coil weight: 35000kgs
Diameter of leveling rollers & tensioning roller: Φ210
Metal Coil Slitter Diameter of slitter shaft: Φ300
Disc cutters: 6CrW2Si, HRC56°~58°, OD500mm x ID300mm x T25mm.
Diameter of recoiler block: Φ610mm
Separating discs: 65Mn, OD250 x ID95 x T10/20mm
Coil Slitting Machine DC motors for slitter and recoiler: 160KW, 200KW.
Metal Coil Slitter speed: (0~30) m/min, adjustable
3. Specifications of Metal Sheet Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-12 x 1800 | 3-12mm | 600-1800mm | Max 35T | Min. 60mm | 30m/min |
| MA-16 x 2200 | 4-16mm | 800-2200mm | Max 40T | Min. 100mm | 30m/min |
| MA-20x 2000 | 5-20mm | 800-2000mm | Max 40T | Min 100mm | 20m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer’s specific requirements, so each customer can buy his own well-content coil slitting machine from us. | |||||
