Product Details:
|
| Description Of Goods: | Steel Slitting Line For Coils 8000kg With Single Arm Hydrualic Decoiler Made By China With Auto Control System | Strip Thickness: | (0.2~1) Mm |
|---|---|---|---|
| Strip Width:: | 600mm | Max. Coil Weight:: | 8000kg |
| Voltage:: | 380V 50Hz 3phases | Material Of Coils: | Carbon Steel, Color Steel, Galvanized Steel And Etc |
| Equipment Color: | Our Standard Or Ordered By The User | Quality Guarantee: | One Year |
| Highlight: | 380V automatic steel coil slitting line,0.2-1mm automatic steel coil slitting line,600mm coil slitter machine |
||
Auto control system Steel Slitting Line for coils 8000kg with single arm hydrualic decoiler made by China
1. Description of goods:
Auto control system Steel Slitting Line for coils 8000kg with single arm hydrualic decoiler made by China
2. Specification of techncal parameter:
| Description | Technical parameter | Remark |
| Material of coils | carbon steel, color steel, galvanized steel and etc. | |
| Strip thickness | (0.2~1) mm; | |
| Strip width | 600mm; | |
| Inner diameter of coils | Φ508mm; | |
| Max. Outer diameter of coils | Φ1500mm; | |
| Max. Coil weight | 8000kg; | |
| Recoiling block | Ф508 x 700; | |
| Recoiler motor | AC 37KW; | |
| Slitter shaft | Ф180 x 700; | |
| Slitter motor: | AC 22KW; | |
| Material of disc cutter | ID180mm x OD300mm x 8/10mm, 6CrW2Si, HRC58-60; | |
| Slitting speed | (0~50) m/min, adjustable. |
3. Our service
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.
We are 24/7 online available for you to answer your questions and solve your problems.

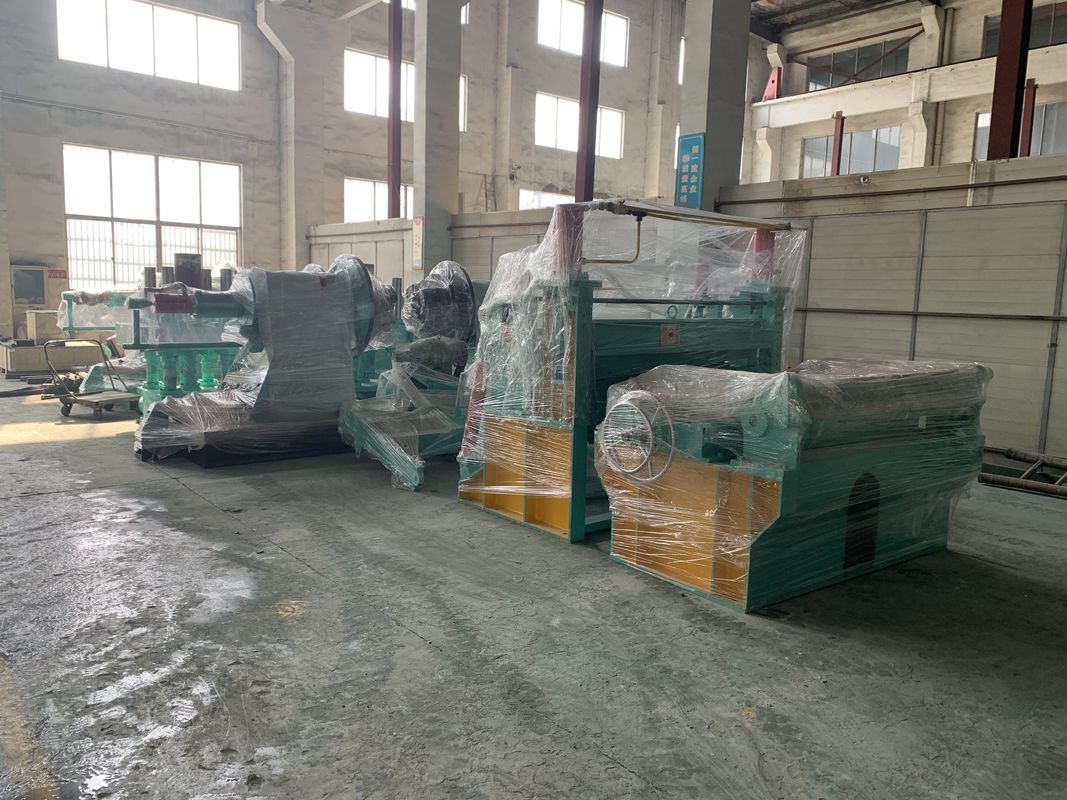

4. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
5. Main features
1. We can make and design all kinds of special machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 10 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
