Product Details:
|
| Product Name: | Steel Strip Slitting Line-automatic Slitting Operate Of Equipment With Heavy Hydraulic Decoiler | Material Of Coils: | Carbon Steel, Color Steel, Galvanized Steel And Etc |
|---|---|---|---|
| Strip Thickness: | (3~10) Mm | Strip Width: | 800~2000mm |
| Steel Slitter Inner Diameter Of Coils: | ≥Φ508mm | Max.outer Diameter Of Coils: | Φ2000mm |
| Steel Slitting Machine Max.coil Weight: | 35000kgs | Material Of Leveling Roller: | 40Cr |
| Steel Slitter Shaft: | Φ300 X 2050mm | Material Of Disc Cutter: | 6CrW2Si, HRC 55-58 |
| Highlight: | 2000mm metal strip slitting machine,3-10mm metal strip slitting machine,60m/min automatic slitter machine |
||
1. Products name

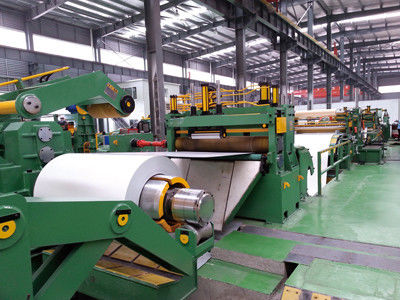

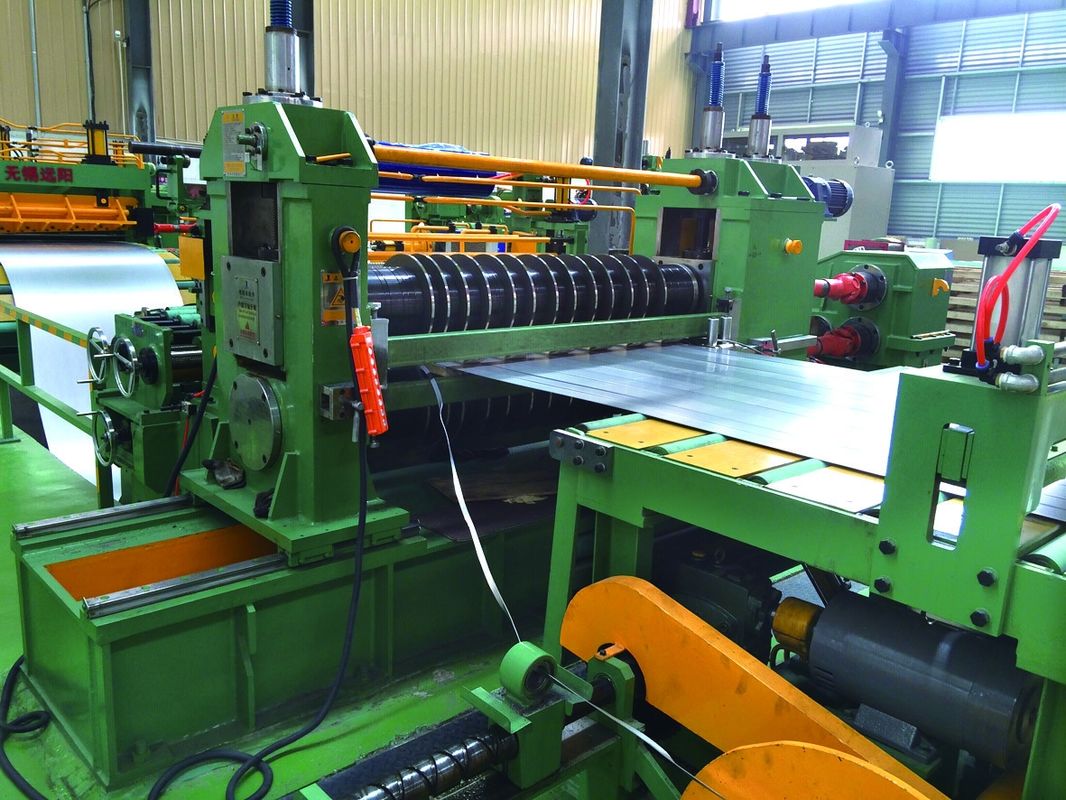

Middle thick Steel Coil Slitting Line-automatic slitting operate of equipment with heavy hydraulic decoiler
2. Introduction:
Capacity of steel strip slitting line is mainly used to slit steel strips of thickness 0.6~5 mm, 1~6 mm, 2-8mm or 3~10mm. And for steel coils with width: 600~1600 mm, 800~1800mm or 800~2000mm into narrower baby coils. This steel slitter is widely used for proving steel strip coils for cold rolling mill, welded pipe mill, roll forming machine, etc.
3. Detail information of Steel Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-5 x 1500 | 0.6-5mm | 500-1500mm | Max 30T | Min. 40mm | 80m/min |
| MA-6 x 1600 | 1-6mm | 600-1600mm | Max 30T | Min. 50mm | 70m/min |
| MA-8 x 1800 | 2-8mm | 600-1800mm | Max 35T | Min 50mm | 80m/min |
| MA-10 x 2000 | 3-10mm | 800-2000mm | Max 35T | Min 60mm | 60m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each steel slitting machine according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
4. Our service
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
5. Main features
1. We can make and design all kinds of special machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 10 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
