Product Details:
|
| Description: | Rolling Mill Machine | Material: | Carbon Steel |
|---|---|---|---|
| Output Width: | ≤150mm | Rolling Force: | P=60T |
| Rolling Speed: | V≤13m/min; | Voltage: | 380V 50Hz 3phases |
| Quality Guarantee: | One Year | ||
| Highlight: | Tandem Steel Cold Rolling Mill,500mm Steel Cold Rolling Mill,4hi tandem mill cold rolling |
||
1. Description:

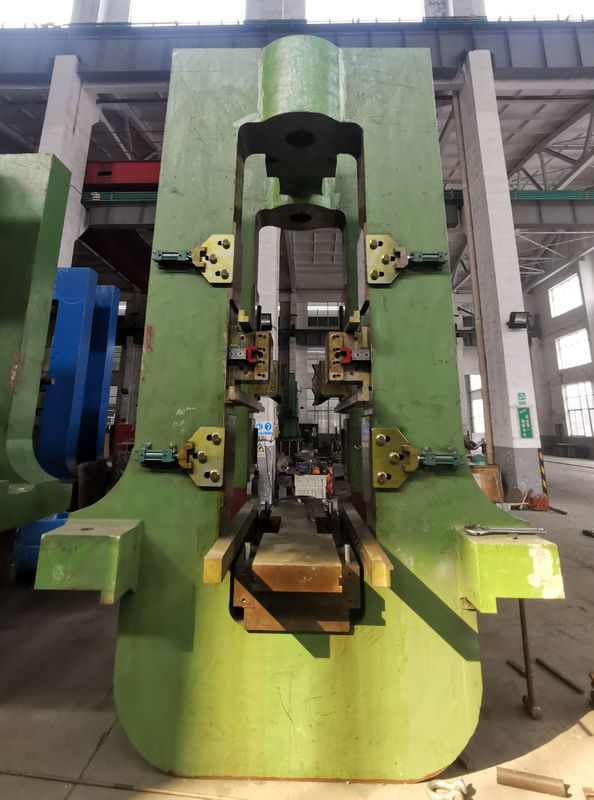

500mm Four-High Two-Stand Tandem Cold Rolling Mill
2. Main function:
It is used for rolling plain carbon steel, stainless steel, aluminum, copper, zinc and other metal strips.
3. Work process:
Roll up → shear → welding (welding machine user-supplied) → Disc storage looper →Turn direction higher frame → vertical roll guide → F1 four-roll mill (measuring thickness, measuring sheet) → F2 four-roll mill ( Measuring and measuring speed→Exit platform (de-oiling, thickness measurement)→shearing→coiling machine→unloading.
4. Technical Parameters:
Table 4-1:
| Type | Φ70/Φ210×250 | Φ135/Φ350×350 | Φ140/Φ450×450 | Φ175/Φ500×550 |
| Work rollers (mm) | Φ70 | Φ135 | Φ140 | Φ175 |
| Roller length (mm) | 250 | 250-350 | 450 | 500 |
| Rolling force (Tons) | 80 | 120 | 280 | 280 |
| Input thickness (mm) | 1.5 | ≤2.7 | ≤3 | ≤4 |
| Finished thickness (mm) | 0.08 | ≥0.15 | ≥0.3 | 0.3 |
| (mm) | 30-200 | ≤250 | 360 | 400 |
| Rolling speed (m/min) | 180 | 180 | 180 | 210 |
| Main motor (KW) | 22 | 55 | 75 | 90 |
| Press-down motor (KW) | 2.2 | 4 | 6 | 7.5 |
| Press-down speed (mm/s) | 0.06 | 0.08 | 0.08 | 0.08 |
| Speed reducer | JZQ650 | JZQ850 | JZQ450 | JZQ1000 |
| Weight (Tons) | 8.5 | 19 | 22 | 24 |
Table 4-2:
| Type | Φ190/Φ535×600 | Φ180/Φ650×850 | Φ205×900/Φ650×850 | Φ480/Φ1150×1380 |
| Work roller (mm) | Φ190 | Φ180 | Φ205 | Φ480 |
| Roller length (mm) | 600 | 850 | 850 | 1380 |
| Input thickness (mm) | 3 | 3 | 3 | 3 |
| Output thickness (mm) | 0.5 | 0.4 | 0.25 | 0.3 |
| (mm) | 500 | 750 | 800 | 1000 |
| Rolling force | 4000KN | 5000KN | 5500KN | 800T |
| Rolling speed (m/min) | 150 | 150 | 210 | 120 |
| Main motor (KW) | 450 | 630 | 630 | 1200 |
| Press-down motor | 30 | 44 | 44 | 60 |
Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
