Product Details:
|
| Description: | Steel Pipe Making Machine | Raw Material: | Pre-slit Carbon Steel CR, HR Coils |
|---|---|---|---|
| Outer Diameter: | Φ35~102MM | Wall Thickness: | 1.2~4.0 Mm |
| Length Accuracy: | ± 3mm | Driving Motor Power: | 132 KW |
| HF Welder Power: | 300 KW | Production Speed: | Max 70 M/min |
| High Light: | 300KW high frequency pipe making machine,1.2-4.0mm high frequency pipe making machine,89mm high frequency tube mill |
||
1. Product Description:
MA 89 High-frequency Welding Pipe Mill steel pipe making machine pre-slit carbon steel CR, HR coils
2. Introduction:
This MA 89 High-frequency Welding Pipe Mill is specially produce high frequency straight seam welded pipes for structural pipe and industrial pipe with Φ35mm~Φ102mm and wall thickness of 1.2~4.0mm. Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.
3. Work process:
Uncoiling→ Accumulating→ Leveling→ Forming→ HF welding→ Deburring (outer) → Cooling→ Sizing→ Straightening→ Cutting→ Discharging
4. Configuration:
| Description | Optional |
| Decoiler | Double/Single-head/Manual/Pneumatic/Hydraulic |
| Shear &butt welding | Manual/Pneumatic welding |
| Accumulator | Vertical/Horizontal accumulator |
| Forming & sizing unit | DC motor/AC motor |
| Solid HF welder | Traditional solid/Integrated welder |
| Computer flying saw | Hot saw/Cold saw |
| Run-out table | Passively/Pneumatic turnover |
5. Technical Parameters:
| Model No. | MA50 | MA60 | MA76 | MA89 |
| Outer diameter | Φ20~63 MM | Φ25~76MM | Φ32~89 MM | Φ35~102 MM |
| Wall thickness | 0.8~3.0 mm | 1.0~3.2 mm | 1.2~3.75 mm | 1.2~4.0 mm |
| Production speed | 0~80 m/min. | 0~80 m/min. | 0~70 m/min. | 0~70 m/min. |
| Driving motor power | 90 Kw*2 sets | 90 Kw*2 sets | 132 Kw*2 sets | 132 Kw*2 sets |
| HF welder power | 200 KW | 200 KW | 300 KW | 300 KW |

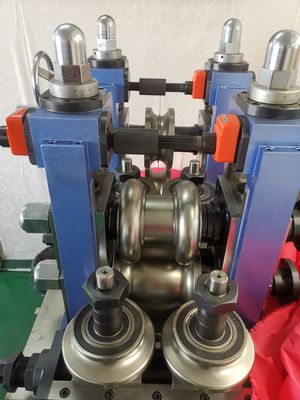

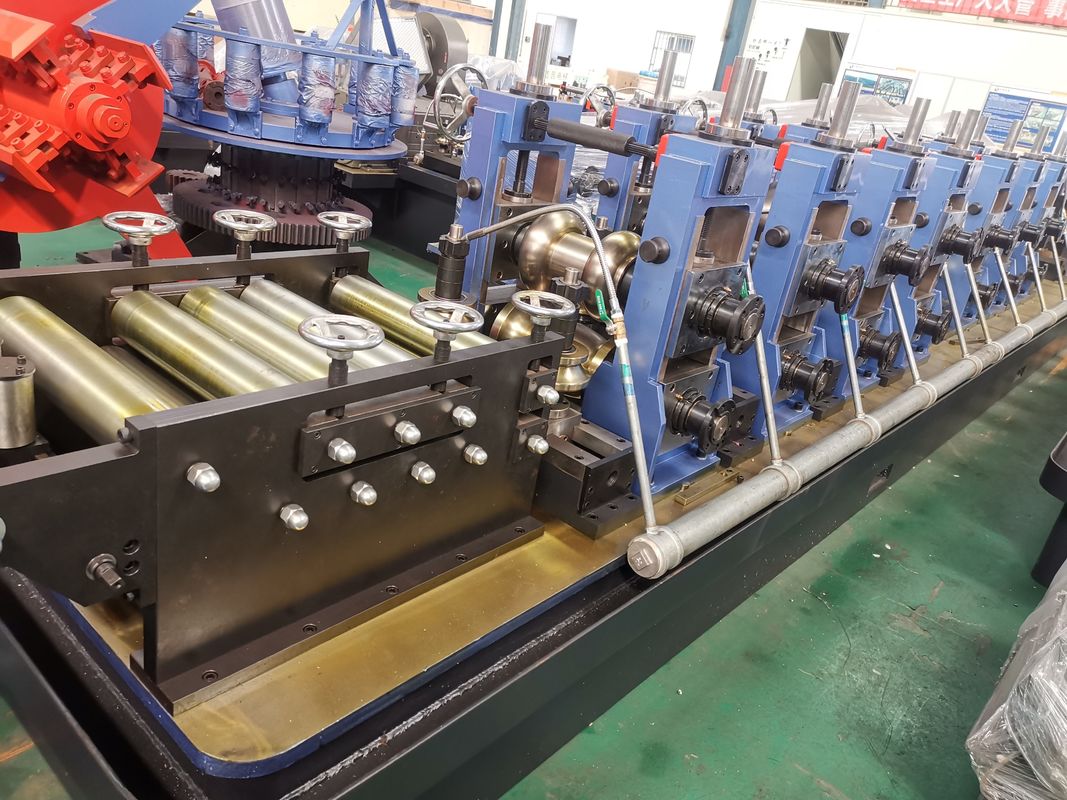

6. Photos for reference:
7. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
8. Warranty term: 12 months (excluding easy-broken parts)
9. Our service and features:
9.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
9.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
9.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
9.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
9.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
