80m/min High Frequency Welded Pipe Mill , Straight Seam Welded Tube Mill Equipment

1. Product Description:

MA 60 High-frequency Welding Pipe Mill straight seam welded pipe Production speed Max 80 m/min

2. Introduction:

This MA 60 High-frequency Welding Pipe Mill is specially produce high frequency straight seam welded pipes for structural pipe and industrial pipe with Φ25mm~Φ76mm and wall thickness of 1.0~3.2mm. Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.

3. Work process:

Uncoiling→ Accumulating→ Leveling→ Forming→ HF welding→ Deburring (outer) → Cooling→ Sizing→ Straightening→ Cutting→ Discharging

4. Configuration:

5. Technical Parameters:

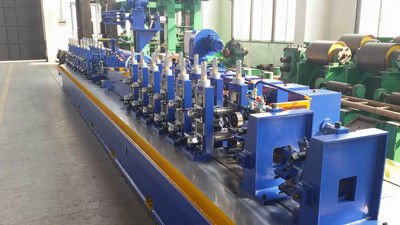

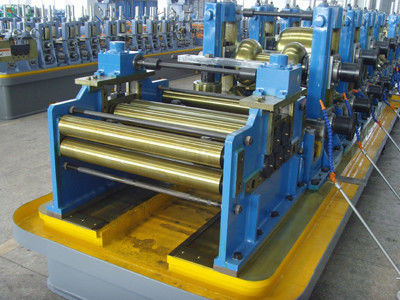

6. Photos for reference:

7.  Technical specifications:

• Material to be processed: carbon steel, cold rolled, hot rolled pre-slit strip coils.
• Steel Grade: 0.2% carbon
• Type of Products: Round Tubes, Square tubes, Rectangular tubes as well as Hollow Sections
• Round Tube Outside Diameter: 15-63mm
• Square tubes: Min 10 x10 Max 50 x 50 mm
• Rectangular tubes: Min 10 x 15 Max 40x 60 mm
• Tube Thickness: Min 0.5 Max 3.25 mm
• Forming Line Speed: Max 100 m/min (Square and Rectangular tubes are produced at lower speeds which depend on side to wall thickness ratio)
• Tube Cut Length: Min 4 Max 12 meter
• Length Accuracy: ± 3mm
• Main Drive Motor: DC 55kW×2
• Line Composition:
• Double Mandrel Uncoiler
• Shear and TIG Welder
• Horizontal Strip Accumulator / Cage Accumulator
• Forming, Welding, Cooling and Sizing Section.
• Computer Flying Saw Cut-Off.
• Run-Out Roll Table, Inspection table Collectors.
• Solid State H.F. Induction Welder: 150 KW, Solid State (or 200KW,Vaccum Tube Type).
• Rolls: Rolls are manufactured in accordance with AISI D3 D2 or E52100
• Electrical control cabinets

8. Packaging

Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.

9. Warranty term: 12 months (excluding easy-broken parts)

10. Our service and features:

10.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
10.2 This is a very perfect and durable equipment. We have more than 10 years experiences.

10.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.

10.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
10.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
