Product Details:
|
| Description: | Welded Pipe Making Machine | Raw Material: | Low Carbon Steel, Low Alloy Constructional Steel CR, HR, GI Coils |
|---|---|---|---|
| Width Range Of Steel Strip: | 30～120mm | Thickness Of Steel Strip: | 0.5～2.5mm |
| Coil Inner Diameter: | φ580～φ640mm | Coil Outer Diameter: | φ800～φ1500mm |
| Coil Weight: | Max. 1.5 Ton | Forming Speed: | 20～100m/min |
| High Light: | 0.5-2.5mm High Frequency Welded Pipe Mill,100m/min High Frequency Welded Pipe mill,10-38mm tube mill plant |
||
1. Product Description:
MA 32 High-frequency Welding Pipe Mill 10～38mm in diameter and 0.5～2.5mm in wall thickness
2. Introduction:

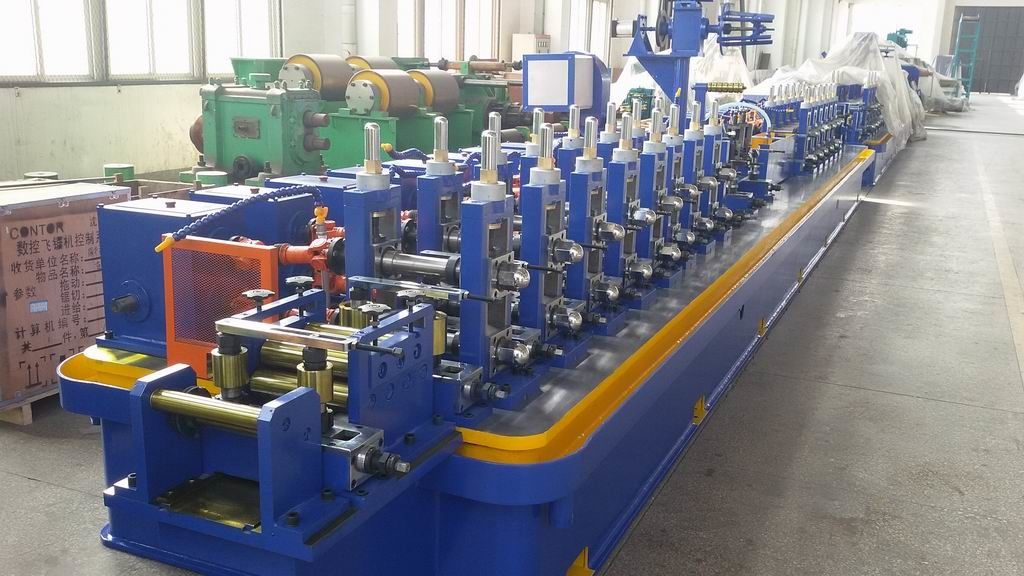

The MA-32 high-frequency welded pipe production line is used to produce both welded pipes of 10～38mm in diameter and 0.5～2.5mm in wall thickness. Square and rectangular pipes and deformed pipes of the corresponding size are available too. This equipment uses roll pass design, so the production line can produce welded steel pipes which has the feature of good quality machining and precision assembling.
3. Work process:
Uncoiling → Cutting and Welding → Cage accumulator →(Feeding, Forming), (Seam guide, HF welding, Squeezing, Deburring), Water cooling, Sizing, Rough Straightening → STD Flying Saw →Checking and Collecting →packing→Storage
4. Configuration:
| Description | Optional |
| Double-head decoiler | Manual/Pneumatic/Hydraulic |
| Shear &butt welding | Manual/Pneumatic |
| Accumulator | Vertical/Horizontal accumulator |
| Forming & sizng unit | DC motor/AC motor |
| Solid HF welder | Traditional solid/Integrated welder |

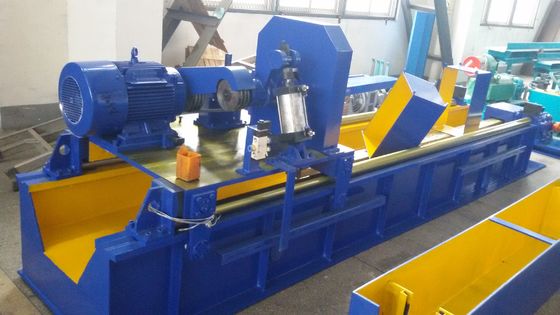

| Computer flying saw | Hot saw/Cold saw |
| Run-out table | Passively/Pneumatic turnover |
5. Technical Parameters:
| Model No. | MA16 | MA20 | MA32 | MA45 |
| Outer diameter | Φ7.5~16MM | Φ10~25MM | Φ13~38MM | Φ16~50MM |
| Wall thickness | 0.3~1.0mm | 0.3~1.5mm | 0.6~1.8mm | 0.7~2.0mm |
| Production speed | 0~100m/min. | 0~100m/min. | 0~100m/min. | 0~90m/min. |
| Driving motor power | 22Kw*1 set | 45Kw*1 set | 75Kw*1 set | 90Kw*1 set |
| HF welder power | 60KW | 60KW | 100KW | 150KW |
6. Technical specifications:
6.1 Main Specifications:
6.2 Finished Pipe Specifications:
6.3 Total Power Capacity: Approx. 400KW
7. Packaging:
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
8. Warranty term: 12 months (excluding easy-broken parts)
9. Our service and features:
9.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
9.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
9.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
9.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
9.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
