Product Details:
|
| Description: | Welded Tube Mill | Raw Material: | Hot Rolling Or Cold Rolling Steel |
|---|---|---|---|
| Coil Width: | 60~160mm | Coil Outer Diameter: | Max. Φ1600mm |
| Coil Inner Diameter: | Φ508mm | Coil Weight: | Max.2.5T |
| Material Thickness: | 0.8~2.5mm For Round Pipes | Round Pipe Size: | Φ20mm~Φ50mm * 0.8mm~2.5mm |
| Square Pipe Size: | 16×16x1.5mm, 20x20x1.8mm, 25x25x2mm, 30x30x2mm, 40x40x2mm | Rectangle Pipe Size: | 25x50x2mm |
| Highlight: | CE HF welded tube mill,Heavy duty HF welded tube mill,160mm high frequency welded tube mill |
||
1. Description

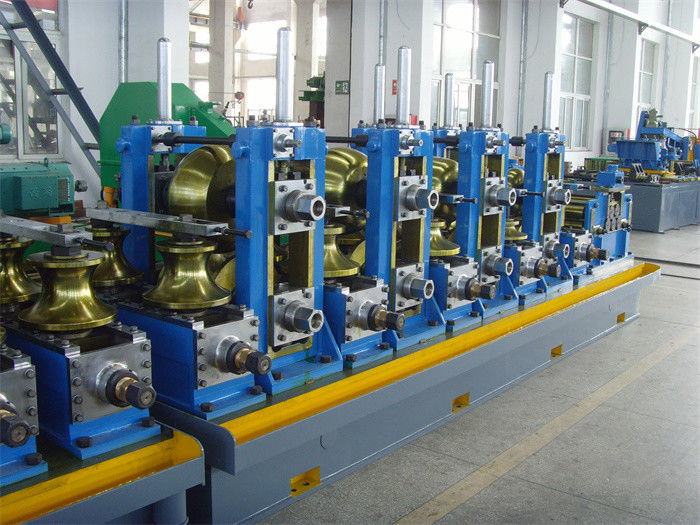

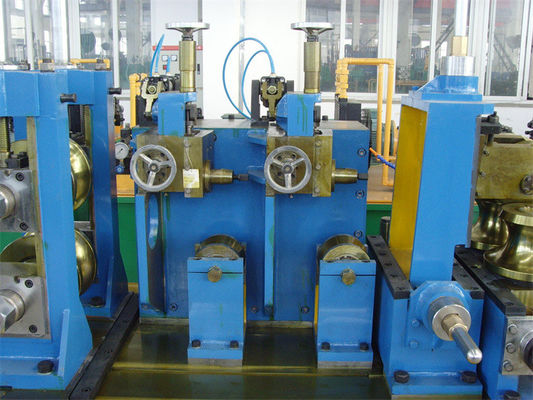

MA 45 High-frequency Welded Pipe Mill
This high-frequency welded pipe mill is specialized equipment to produce high frequency straight seam welded pipes for structural pipe and industrial pipe with Φ20mm~Φ50mm and wall thickness of 0.8~2.5mm. Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.
2. Product description:
MA45 (Heavy duty) HF Welded Pipe Mill (Φ20~Φ50mm x 0.8~2.5mm x 4~10m x 30~80m/min)
3. Work process:
Uncoiling→ Accumulating→ Leveling→ Forming→ HF welding→ Deburring (outer) → Cooling→ Sizing→ Straightening→ Cutting→ Discharging
4. Main structure
| No. | Description | Qty. | Note |
| 1 | Double heads decoiler | 1 Set | Manual / hydraulic tension optional |
| 2 | Shear & butt welding device | 1Set | Welder not included, pneumatic/hydraulic cutting optional |
| 3 | Vertical accumulator | 1Set | 5.0m X 2.4m |
| 4 | Forming & Sizing unit | 1Set | Main motor 90KW, 1 set |
| 5 | Zinc spray device | 1Set | |
| 6 | Hot frication saw | 1Set | |
| 7 | Run out table (single side discharging) | 1Set | |
| 8 | Control system | 1Set | |
| 9 | Roller | Optional / prepared by Buyer | |
| 10 | Pneumatic system | Prepared by Buyer | |
5. Technical specifications:
5.1 Raw material requirements
5.2 Producing speed: 30~80m/min
5.3 Power supply:
6. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
7. Warranty term: 12 months (excluding easy-broken parts)
8. Our service and features:
8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
