Product Details:
|
| Raw Material: | Hot Rolling Or Cold Rolling Steel | Material Thickness: | 0.8~2.5mm For Round Pipes |
|---|---|---|---|
| Round Pipe Size: | Φ20mm~Φ50mm * 0.8mm~2.5mm | Square Pipe Size: | 16×16x1.5mm, 20x20x1.8mm, 25x25x2mm, 30x30x2mm, 40x40x2mm |
| Rectangle Pipe Size: | 25x50x2mm | Producing Length: | 4~10m |
| Producing Speed: | 30~80m/min | Voltage: | 380V 50Hz 3phases |
| High Light: | 219mm High Frequency Welded Pipe Mill,8.0mm High Frequency Welded Pipe Mill,219mm round tube mill |
||
1. Description of goods:

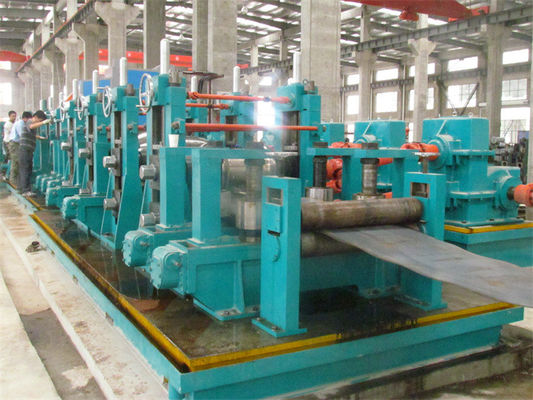

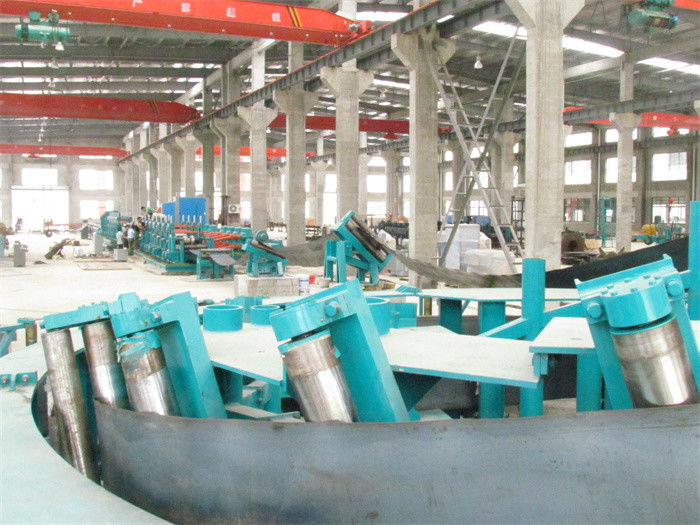

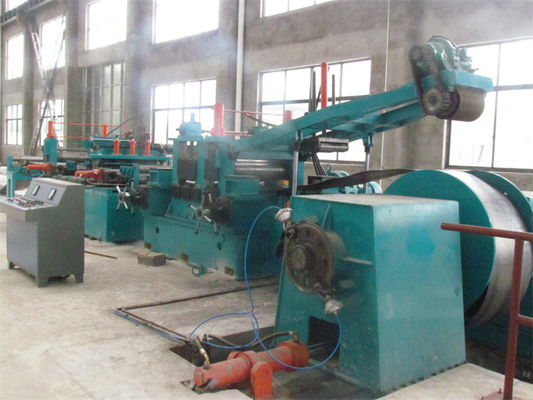

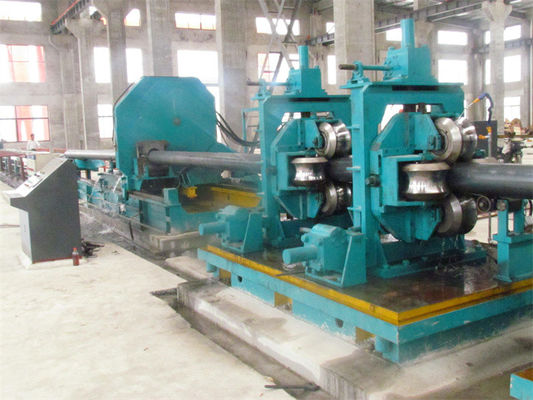

MA-Φ219 High Frequency Welded Pipe Mill for making round square and rectangular pipes
2. Specification:
| Model No. | MA114 | MA125 | MA165 | MA219 |
| Outer diameter | Φ40~114 MM | Φ50~130 MM | Φ76~165 MM | Φ89~219 MM |
| Wall thickness | 1.2~4.0 mm | 2.0~5.0 mm | 2.0~6.0 mm | 3.0~6.0 mm |
| Production speed | 0~70 m/min. | 0~60 m/min. | 0~50 m/min. | 0~50 m/min. |
| Driving motor power | 132 Kw*2 sets | 160 +200 Kw | 200 Kw*2 sets | 200 Kw*3 sets |
| HF welder power | 300 KW | 400 KW | 500 KW | 500 KW |
