High Frequency Welding Pipe Production Line With Horizontal Strip Accumulator

1. Product description:

MA165 High Frequency Welded Pipe Mill/Welded Pipe Production Line

2. Technical Parameters:

3. Technical Specifications:

• Material to be processed: carbon steel, cold hot rolled pre slit strip coils of weld able grade with max. 0.2% carbon
• Type of Production: Round Tubes, Squar, Square and Rectangular Hollow Sections
• Round Tube Outside Diameter: Min 50.8, Max 165mm
• Square Hollow Section: Min 40x 40, Max 130 x 130 mm
• Rectangular Hollow Section: Min 40 x 60, Max 100x 160 mm
• Tube Thickness: Min 1.8 Max 6.0 mm
• Forming Line Speed: Max 55 m/min (Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)
• Tube Cut Length: Min 4 Max 15meter
• Length Accuracy: ± 3mm

4. Line Composition:

• V-shape pre-discharging table (V coil stand)
• Hydraulic charging wagon (coil car)
• Hydraulic discharging machine (uncoiler)
• HydraulicShear and TIG Welder.
• Horizontal Strip Accumulator.
• Forming, Welding, Cooling and Sizing Section. Drive Motor: DC 132 kW+ 132 kW
• Computer Flying Saw Cut-Off.
• Straightener
• End Milling and Chamfering Machine
• Baling Press
• Driven Roller Run Out Table, Inspection table & Collectors.
• Solid State H.F. Induction Welder: 400 kW, Solid State Type
• Rolls: Rolls are manufactured out of AISI D3 D2 or E52100
• Hydraulic Units
• Electrical Panels

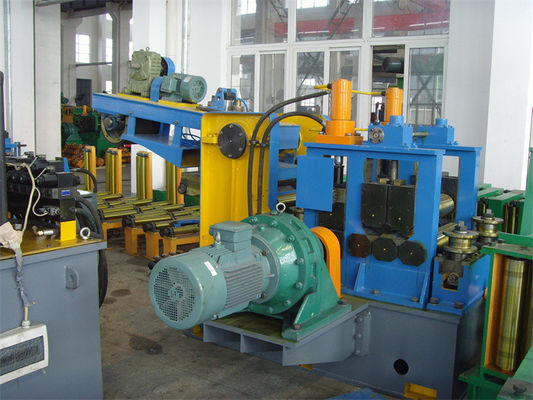

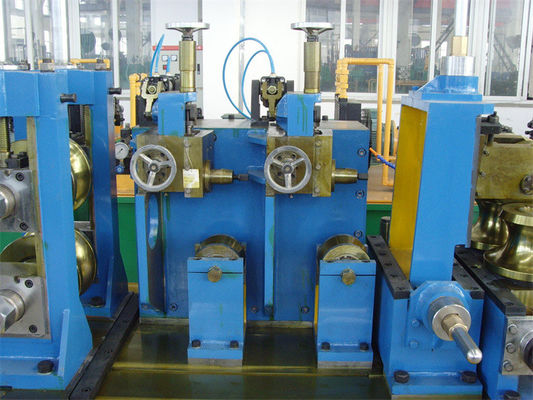

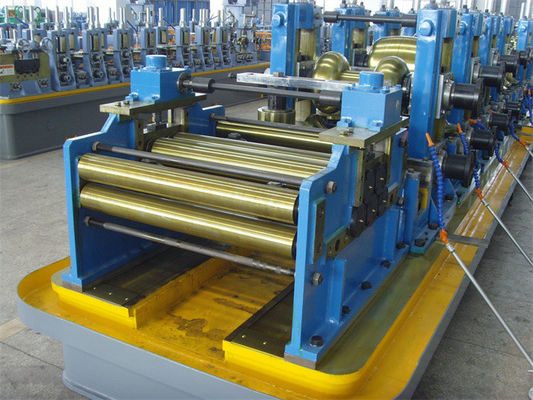

5. Photo for reference:

6. Packaging

Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.

7. Warranty term: 12 months (excluding easy-broken parts)
