Product Details:
|
| Raw Material: | Square Tube Making Machine | Coil Width: | 60~160mm |
|---|---|---|---|
| Coil Outer Diameter: | Max. Φ1600mm | Coil Inner Diameter: | Φ508mm |
| Coil Weight: | Max.2.5T | Material Thickness: | 0.8~2.5mm For Round Pipes |
| Round Pipe Size: | Φ20mm~Φ50mm * 0.8mm~2.5mm | Square Pipe Size: | 16×16x1.5mm, 20x20x1.8mm, 25x25x2mm, 30x30x2mm, 40x40x2mm |
| Rectangle Pipe Size: | 25x50x2mm | Producing Length: | 4~10m |
| Producing Speed: | 30~80m/min | ||
| Highlight: | CE High Frequency Welded Pipe Mill,1.2-4.5mm High Frequency Welded Pipe Mill,114mm tube mill machine |
||
1. Description of goods:

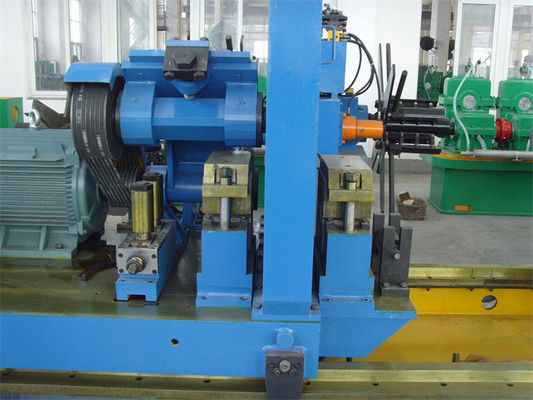

MA-Φ114 High Frequency Welded Pipe Mill high speed with water cooling system cold saw
2. Specification:
Finished product: Round Tubes, Square and Rectangular Hollow Sections
Round Tube Outside Diameter: Min 22, Max 114mm
Square Hollow Section: Min25x 25, Max 90 x 90 mm
Rectangular Hollow Section: Min 25 x40, Max 80x 120 mm
Tube Thickness: Min 1.2, Max 4.5 mm
Forming Line Speed: Max 60m/min (Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)
Tube Cut Length: Min 4 Max 12 meter
Length Accuracy: ± 3mm
Main Drive Motor: DC 90kWx2
Line Composition:
Double Mandrel Uncoiler.
Shear and TIG Welder.
Horizontal Strip Accumulator.

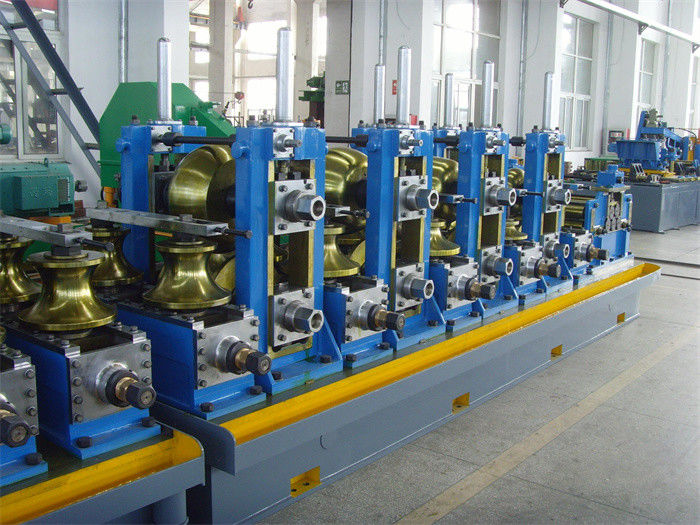

Forming, Welding, Cooling and Sizing Section.
Computer Flying Saw Cut-Off.
Straightener:
End Milling and Chamfering Machine
Baling Press
Driven Roller Run Out Table, Inspection table & Collectors.
Solid State H.F. Induction Welder: 300 kW, Solid State (400kW, Vaccum Tube Type) Type
Rolls: Rolls are manufactured out of AISI D3 D2 E52100
Electrical Panels
