Product Details:
|
| Raw Material: | Hot Rolling Or Cold Rolling Steel | Coil Width: | 60~160mm |
|---|---|---|---|
| Coil Outer Diameter: | Max. Φ1600mm | Coil Inner Diameter: | Φ508mm |
| Coil Weight: | Max.2.5T | Material Thickness: | 0.8~2.5mm For Round Pipes |
| Round Pipe Size: | Φ20mm~Φ50mm * 0.8mm~2.5mm | Square Pipe Size: | 16×16x1.5mm, 20x20x1.8mm, 25x25x2mm, 30x30x2mm, 40x40x2mm |
| Rectangle Pipe Size: | 25x50x2mm | Producing Length: | 4-12m |
| Producing Speed: | 30~80m/min | ||
| High Light: | 4-12m High Frequency Welded Pipe Mill,30m/min High Frequency Welded Pipe Mill,ISO pipe milling machine |
||
1. Description of goods:

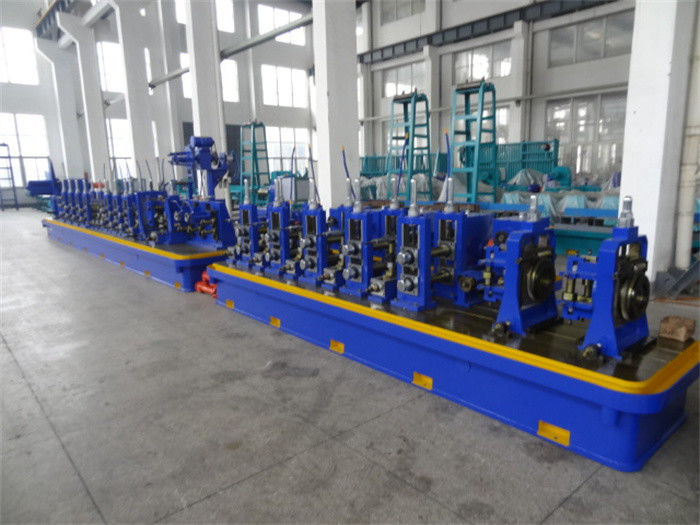

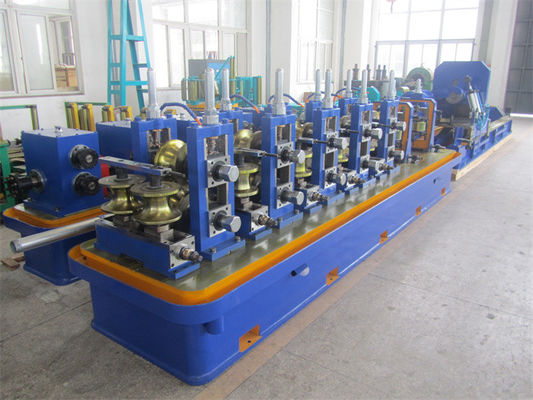

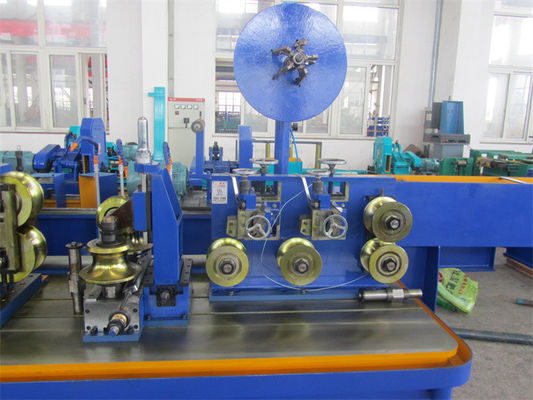

High Frequency Welded Pipe mill with double head decoiler making pipe complete production line MA-Φ76
2. Specification of machine:
Input raw material: pre-slit carbon steel CR, HR coils
Finished products: round tubes, square tubes and rectangular tubes as well as deformed tubes
Round tube outside diameter: 22 -89mm
Square tubes: Min12 x 12mm, Max70 x 70mm
Rectangular tubes: Min8 x 12, Max60x 80 mm
Tube Thickness: 1.2 -4.0 mm
Forming Line Speed: Max 100 m/min
(Square and rectangular tubes are produced at lower speeds while side to wall thickness ratios are different.)
Tube Cut Length: 4 -12 m
Length Accuracy: ± 3mm
Drive Motor: DC 75kW×2, adjusted by Eurotherm 590 speed controller
3. Technical parameter:
| Model No. | MA114 | MA125 | MA165 | MA219 |
| Outer diameter | Φ40~114 MM | Φ50~130 MM | Φ76~165 MM | Φ89~219 MM |
| Wall thickness | 1.2~4.0 mm | 2.0~5.0 mm | 2.0~6.0 mm | 3.0~6.0 mm |
| Production speed | 0~70 m/min. | 0~60 m/min. | 0~50 m/min. | 0~50 m/min. |
| Driving motor power | 132 Kw*2 sets | 160 +200 Kw | 200 Kw*2 sets | 200 Kw*3 sets |
| HF welder power | 300 KW | 400 KW | 500 KW | 500 KW |
