steel coil slitting machine slitting line

Products name:

steel coil slitting machine slitting line

Introduction:

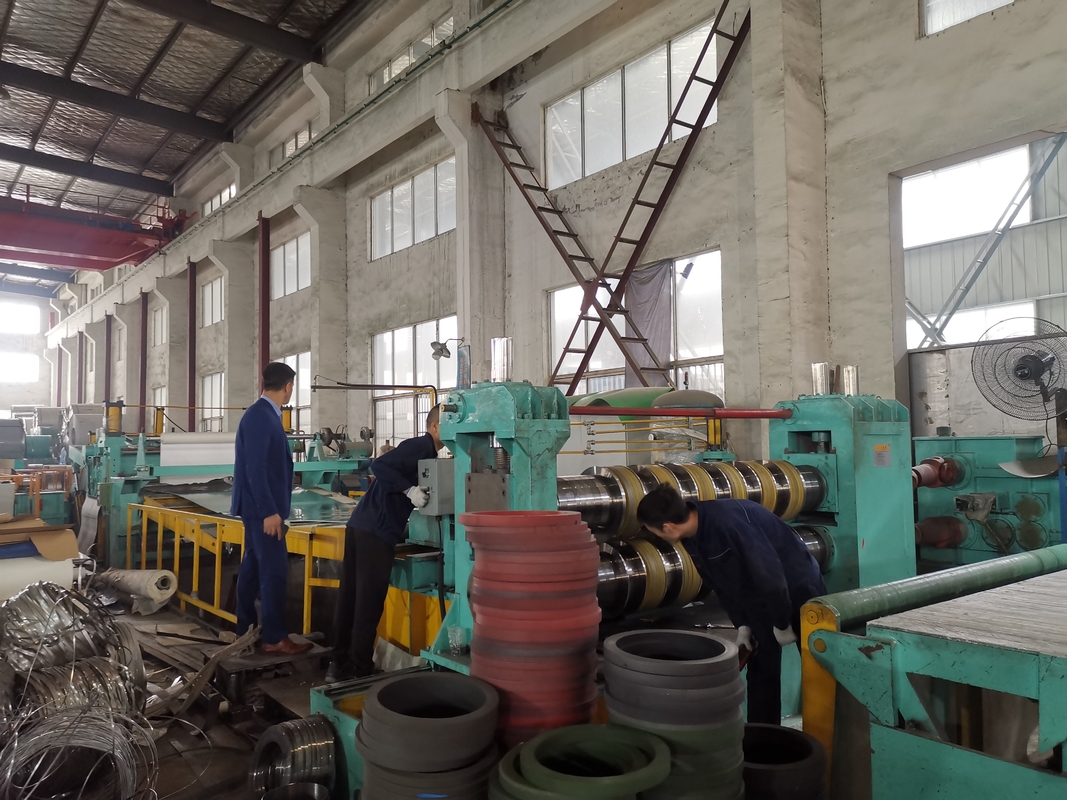

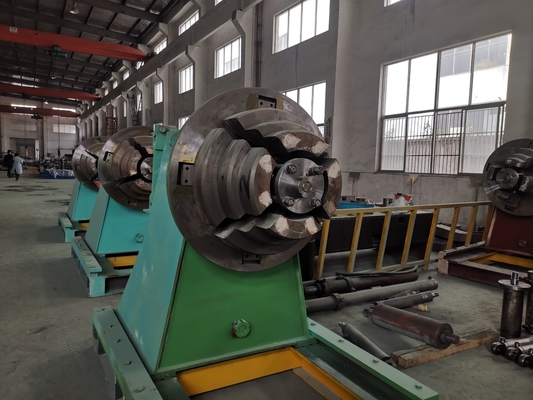

The steel coil slitting line, composed of uncoils, feeding, shearing and other equipments, is a production line. This kind of production line is able to cut the wide steel coil into the steel coil which has certain dimension in the direction of length. This steel coil will be an input preparation for those processes, such as rolling, welding, cold bending and forming, punching. All kinds of non-ferrous strips can be cut by cutting tools of different materials.
The main function of this of this metal steel coil slitting line apply to cut the width of coils into smaller coils, and any thickness is available.

MA-(3~10)×2000mm Steel Coil Slitting Line
Material of coils: carbon steel, color steel, galvanized steel and etc
Strip thickness: (3~10) mm
Strip width: 800~2000mm
Steel Slitter Inner diameter of coils: ≥Φ508mm
Max.outer diameter of coils: Φ2000mm
Steel Slitting Machine Max.coil weight: 35000kgs
Material of leveling roller: 40Cr
Steel Slitter shaft: Φ300 x 2050mm
Material of disc cutter: 6CrW2Si, HRC 55-58
Steel Slitting Machine Recoiling spindle: Φ610×2100mm
Slitting speed: (0~60) m/min, adjustable

Features of Steel Coil Slitting Line:
1. After slitting, the strips need coiling on the equipment.
2. Commonly, the D.C. drives are used on slitter, coiler and uncoiler so that the different mandrel speeds are retained. Therefore, the constant line speed is attained too.

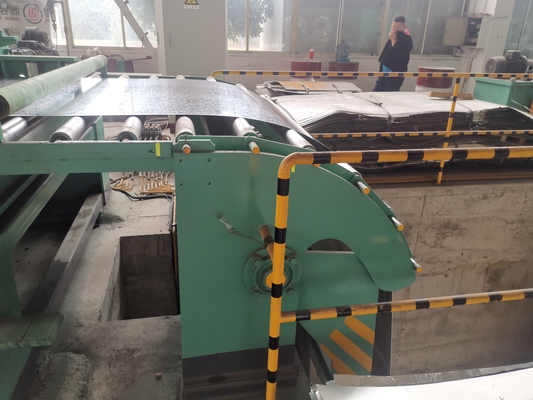

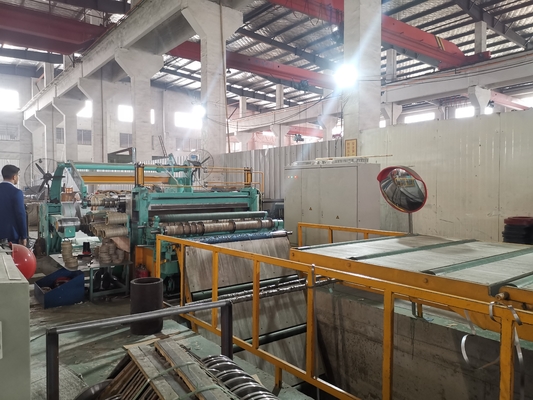

3. Additionally, for faster speeds and thinner strips a loop pit is provided for installation before recoiling with tensioner equipment
4. Any different specification is available, as we can offer a comprehensive range of steel. We design and produce products in accordance with customers needs.

Application of Steel Coil Slitting Line:
This sheet metal slitting machine is suitable to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials.
