Product Details:
|
| Product Name: | Strip Thickness: 1~6mm Middle Thick Sheet Cut To Length Equipment, Model :MA-(1~6)×1600mm | Cutting Speed: | (0~40) M/min, Adjustable |
|---|---|---|---|
| Material: | CR, HR Carbon Steel Coils, GI, PPGI Steel Plates. | Voltage:: | 380V 50Hz 3phases Or Order By The User |
| Quality Guarantee: | One Year After Shipping | Machine Color: | It's Order By The User Or By Our Standard |
| After Service: | Avalible On Any Local China Working Time | Color: | As Our Standard Or Order By User |
| High Light: | 1-6x1600mm Steel Cut To Length Line,50Hz Steel Cut To Length Line,0.5mm/m precision cut to length line |
||
1. Products name:

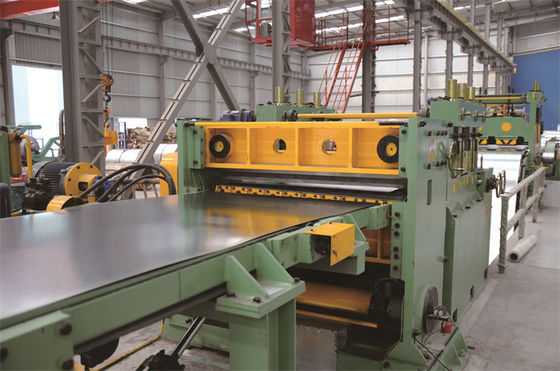

Strip thickness: 1~6mm Middle thick Sheet cut to length equipment, model :MA-(1~6)×1600mm
2. Introduction:

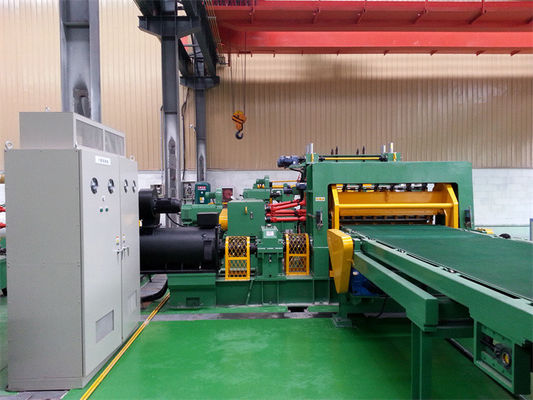

Middle thick plate cut-to-length line can meet customer’s request of max line speed 40m/min by uncoiling & leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets.
This coil CTL line is especially suitable for CR, HR carbon steel coils, GI, PPGI steel plates.

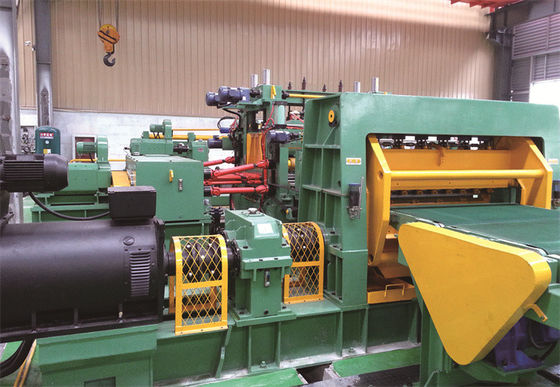

The plate cut-to-length line (coil CTL line) has one leveling machine driven by DC or AC motor, and the length-fixing is by encoder, shearing style is stop-shear.
The middle thick plate cut-to-length line fit steel coils with thickness: (1~6mm, 2~8mm, 3-10mm) and changeable width, and length of finished sheets depend on customer’s practical need.
3. Advantages & Characteristics for this coil CTL line:
High precision
Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in average;
Leveling precision: ±1mm/㎡;
Sheet length precision: ±0.5mm/m;
Sheet diagonal length precision: ±0.5mm/m;
4. Main technical parameter:
| Model | Thickness | Length | Leveling speed | |
| MA-6 x 1600 | 1.0-6.0mm | 600-1600mm | adjustable | Max 40m/min |
| MA-8 x 1800 | 2.0-8.0mm | 1000-1800mm | adjustable | Max 30m/min |
| MA-10x 2000 | 3-10mm | 1000-2000mm | adjustable | Max 30m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each thick plate cut-to-length line (coil CTL line) according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | ||||
