Product Details:
|
| Product Name: | MAZS(1-6)×1600 Slitting Line Slitting Into Several Strips According To The Requirements Of Thickness And Width | Thicknes:: | 1-6mm |
|---|---|---|---|
| Speed: | 100m/min | Width: | 800-1600mm(Max) |
| Inner Diameter Of Steel Coil: | φ508、φ610、φ760 | Outer Diameter Of Steel Coil: | φ800-φ2000mm（Max） |
| Weight Of Steel Coil: | 32T（Max） | Color: | As Our Standard Or Order By User |
| High Light: | 1.8-4mm roll forming line,Rack Shelf Plate roll forming line,55KW steel forming machine |
||
1. Product name:
MAZS(1-6)×1600 slitting line slitting into several strips according to the requirements of thickness and width.
2. Main technical parameter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 50m/min |
| MA-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 80m/min |
| MA-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 100m/min |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
3.Process flow
Coil car - decoiling frame - material uncoiling device - pinch and leveler - shearing head machine -Transition roller -guiding centering device - slitting machine - side scrap device - storage pit - tension device - recoiling- discharge coil car.
4.What service we can get from your company?
- VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.
We are 24/7 online available for you to answer your questions and solve your problems.

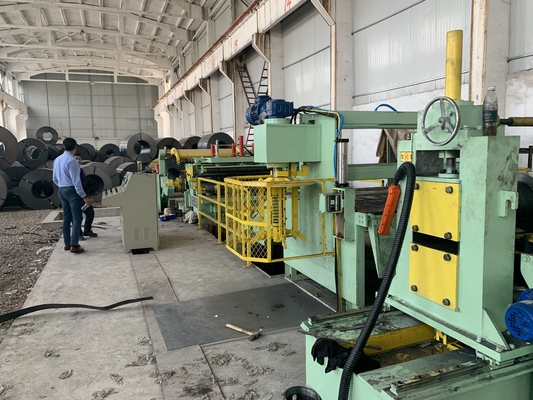

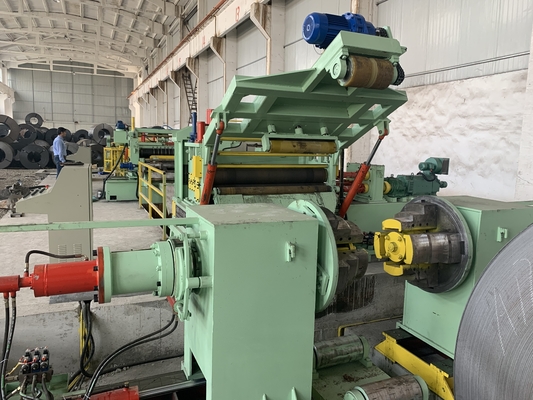

5.Machine details photos as references
