Product Details:
|
| Material Of Coils: | Carbon Steel, Stainless Steel, Galvanized Plate, Colored Steel Plate | Thickness:: | 0.3-2mm |
|---|---|---|---|
| Speed: | 80m/min | Width: | 1300mm |
| Inner Diameter Of Coils: | ≥Φ508mm | Outer Diameter Of Coils: | : Φ1800mm |
| Max. Coil Weight: | 15000Kg | Slitter Motor: | 55KW DC Motor |
| Slitter Shaft: | Ф205 X 1400mm | Color: | As Our Standard Or Order By User |
| Highlight: | ridge cap roll forming machine,5.5KW ridge cap roll forming machine,30m/min wall panel forming machine |
||
1. Product name:

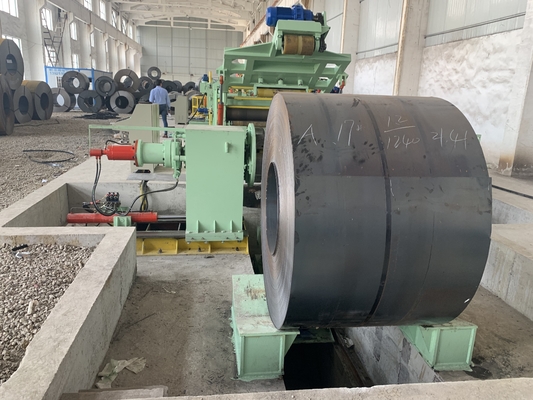

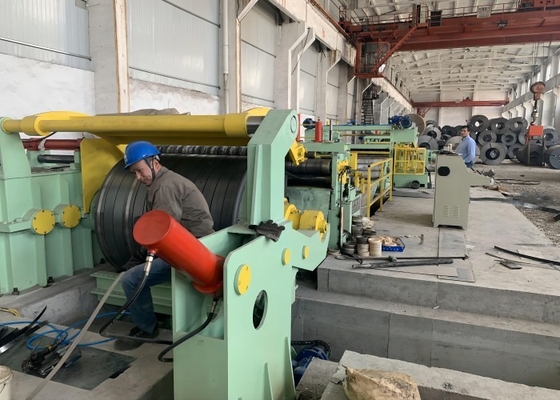

MAZS-(0.3-2)×1300mm Metal Coil Slitter for Material of coils: carbon steel, stainless steel, galvanized plate and so on.
2. Main technical parameter:
Material of coils: carbon steel, stainless steel, galvanized plate, colored steel plate
Strip thickness: (0.3-2) mm
Max. Strip width: 1300mm
Inner diameter of coils: ≥Φ508mm
Outer diameter of coils: Φ1800mm
Max. Coil weight: 15000Kg
Slitter motor: 55KW DC motor
Slitter shaft: Ф205 x 1400mm
Disc knives on slitter shaft: ID205mm x OD310mm x 10mm, 6CrW2Si(H13, SKD-11).
Separating disc: ID75 x OD180mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.

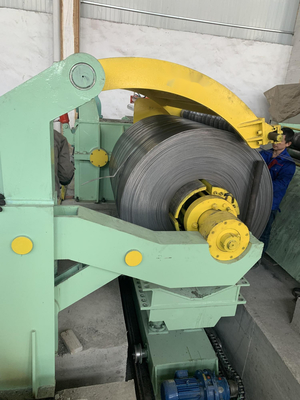

Recoiler block: Ф508 x 1400mm
Recoiler motor: 75KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 80m/min, adjustable.
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 50m/min |
| MA-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 80m/min |
| MA-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 100m/min |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
3.Decoiler and uncoiler details
