Product Details:
|
| Product Name: | MAZS ( 0.7-3)x600 Slitting Line | Thickness:: | 0.2-1 Mm |
|---|---|---|---|
| Speed: | 0-80 30m/min | Width: | 100-600mm |
| Coil Weight: | 8T (Max) | Strips: | 3mm≤6 Strips |
| Power: | 380V/50HZ/3P Or Order By User | Color: | As Our Standard Or Order By User |
| High Light: | 0.3-0.8mm steel tile roll forming machine,30m/min steel tile roll forming machine,4.4KW steel tile forming machine |
||
1. Product name:
MAZS ( 0.2-1)x600 Slitting line is used for cold rolling,galvanized coil, decoiling, slitting and recoiling.
2. Process flow:
V-shaped preparation table - coil car - decoiling frame - material uncoiling device - pinch and leveler - hydraulic shearing machine - storage pit - guiding centering device - slitting machine - side scrap device - storage pit - tension device - recoiling- discharge coil car
3.Specification form of Metal Coil Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 50m/min |
| MA-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 80m/min |
| MA-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 100m/min |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||

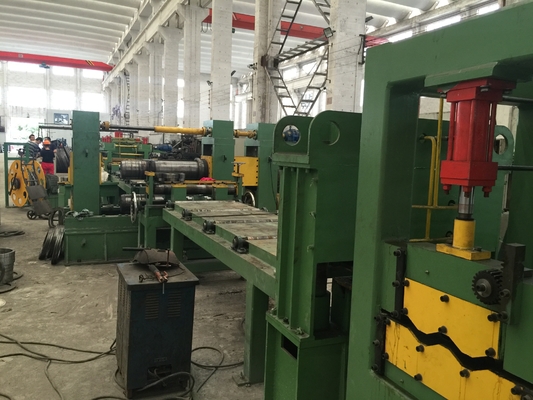

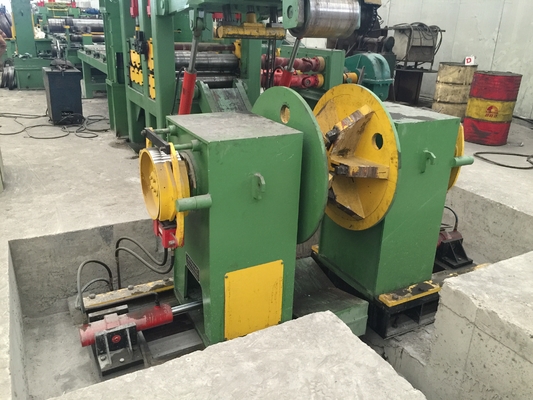

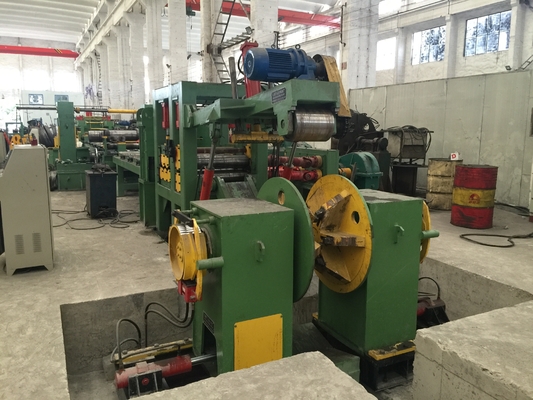

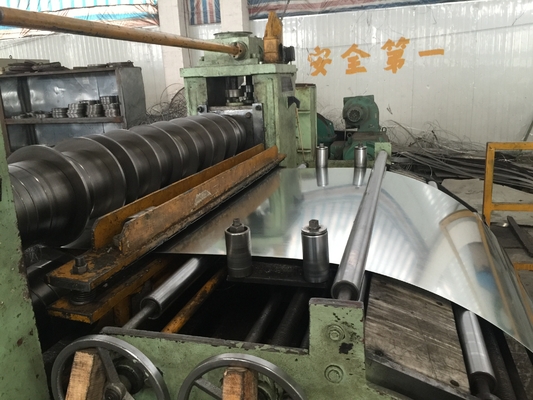

4. Reference load photos
