Product Details:
|
| Thickness: | 4、0.4mm—3.0mm | Width: | 500-1500 Mm |
|---|---|---|---|
| Coil Inner Dia: | φ508mm、φ610mm | Coil Outside Diameter: | φ1000mm—φ1800mm |
| Coil Weight: | 20Tons | Strips: | 3-50 Strips |
| The Line Speec: | 0-150m/min | Direction: | Left To Right |
| High Light: | 3.15-4.75mm U profile forming machine,12m/Min U profile forming machine,30KW automatic roll forming machine |
||
1. Product name:
Heavy type slitting machine for coil width 1500mm with high precision capacity
2. Description:

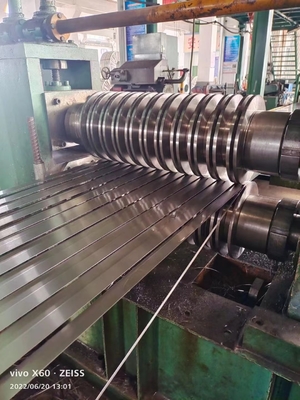

This equipment is used to cut the raw steel coil longitudinally to the finished steel coil of the required width. By changing the cutters of different materials, it can cut the steel coils and non-ferrous metal coils of various specifications and grades longitudinally, and prepare the blanks for the next process (such as rolling, welding pipe, cold bending, profiling, stamping, welding profiles, etc.).
3. Technical Process:
Material preparation - shipping and loading - hanging and uncoiling - pressing and discharging - shovel head Presser straight head and guide wire support - traction pinch initial leveler - steel strip head and tail plate shearer - front looper support frame (looper pit) - guide alignment - longitudinal shear host - transition guide table - side wire winder - side wire take-up drum - tail pressing mechanism - rear looper support frame (looper pit) - pre splitting tension damping - splitting pinch machine - splitting shear - finished product guide head support - slitting and pressing - winding host - blanking and transportation - discharging and packaging.
4.Main techncial parameter
| Description | Technical parameter |
| Material | Q195,Q215,SPCC; |
| Material thickness | 0.4mm-3.0mm; |
| Material width | 500mm-1500mm; |
| Coil inner diameter | φ508mm,φ610mm |
| Doil outside diameter | φ1000mm-φ1800mm |
| Coil weight | ≤25 Tons |

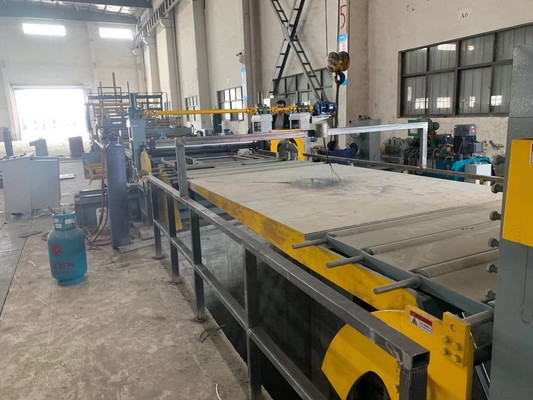

5.The whole line layout
