Product Details:
|
| Product Name: | C Z Purline Roll Forming Machine With Automatic Production Line Is Controlled By PLC Control Panel | Thickness:: | 0.2-1mm |
|---|---|---|---|
| Speed: | 130m/min | Main Power: | 15KW |
| Control System: | PLC Panasonic | Drive: | By Chain (one By Gear Box) |
| Automaticity: | Semi-automatic / Automatic | Color: | As Our Standard Or Order By User |
| High Light: | 1.5-3.0mm cz purlin roll forming machine,cz purlin roll forming machine,CE cold roll forming machine |
||

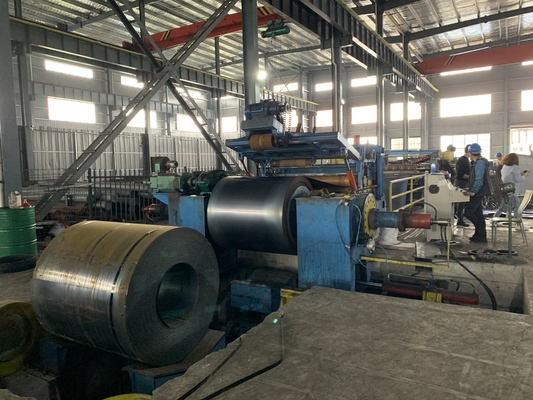

I. Equipment Flow Chart
Feeding trolley - double-cone feeding machine - coil leading device, head shoveling device, double-roller feeding, head shearing device - rectification - disc shear - waste scrap winding - looper - pre-slitting, tension machine - recoiling - unloading trolley - hydraulic control - electrical control
Thin sheet slitting line is suitable for coil strip thickness (0.2~1) mm, (0.3-2) mm, (0.3-3) mm and (0.4-4)mm; while strip width is changeable: 600mm. 1000mm, 1250mm, 1600mm, 1800mm and so on.
II. Detailed technical data for MA-(0.2～1)×600mm Thin Sheet Slitting Line :
MA-(0.2～1)×600mm Thin Sheet Slitting Line domestic customer
Material of coils: carbon steel, color steel, galvanized steel and etc
Strip thickness: (0.2~1) mm
Strip width: 600mm
Inner diameter of coils: Φ508mm
Max. Outer diameter of coils: Φ1500mm
Max. Coil weight: 8000kg
Recoiling block: Ф508 x 700
Recoiler motor: AC 37KW
Slitter shaft: Ф180 x 700
Slitter motor: AC 22KW
Material of disc cutter: ID180mm x OD300mm x 8/10mm, 6CrW2Si, HRC58-60.
Slitting speed: (0~50) m/min, adjustable
III. Specification form of Metal Coil Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 50m/min |
| MA-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 80m/min |
| MA-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 100m/min |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
