Product Details:
|
| Product Name: | Steel Coil Slitting Machine | Thickness:: | 0.3-3.0mm |
|---|---|---|---|
| Speed: | 130m/min | Main Power: | 18.5KW |
| Control System: | PLC Panasonic | Drive: | By Chain (one By Gear Box) |
| Automaticity: | Semi-automatic / Automatic | Voltage: | 380V 50Hz 3phases Or Order By The User |
| High Light: | 15KW c&z purlin forming machine,1.5-3.0mm c&z purlin forming machine,15m/min c channel forming machine |
||
I. Composition of production line equipment
1. Hydraulic loading trolley
2. Hydraulic cantilever decoiler
3. Coil pressing and uncoiling device
4. Double roll pinch and plate shearing machine
5. Electric eye control looper table
6. Left and right positioning device

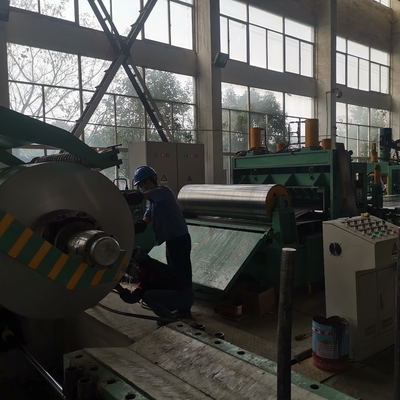

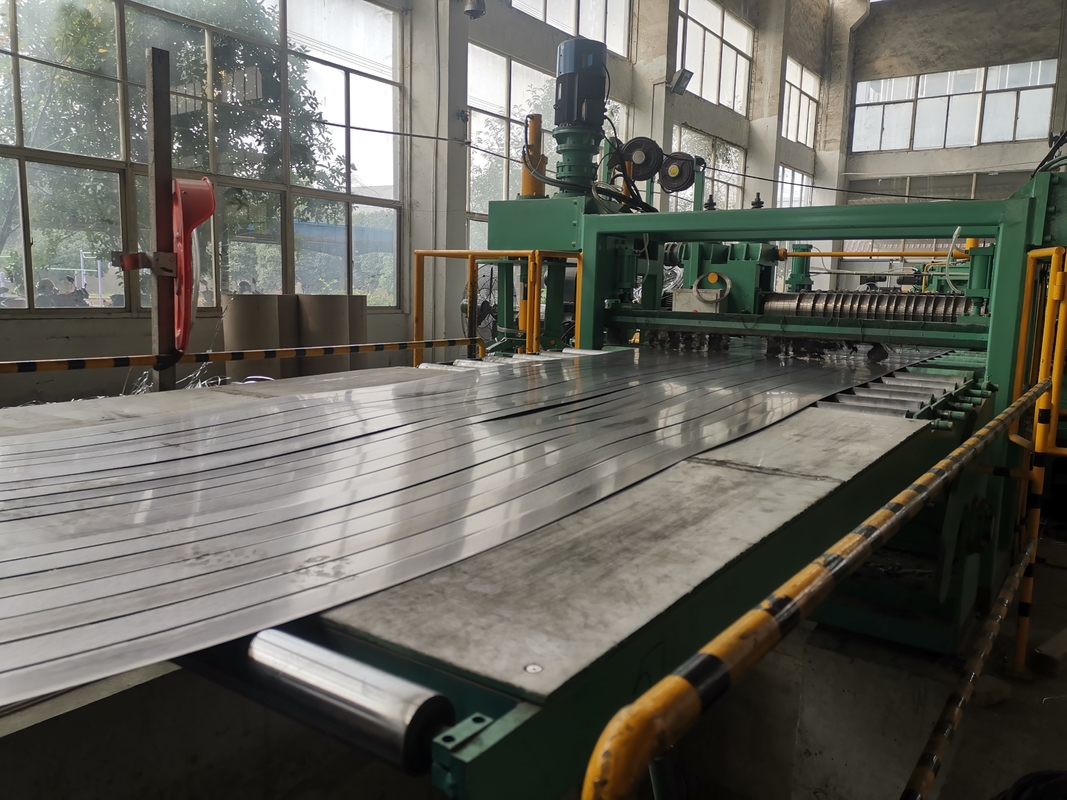

7. Slitting machine
8. Scrap collecting device (with wire arrangement function)
9. Electric eye control looper table
10. Separator device and damping device

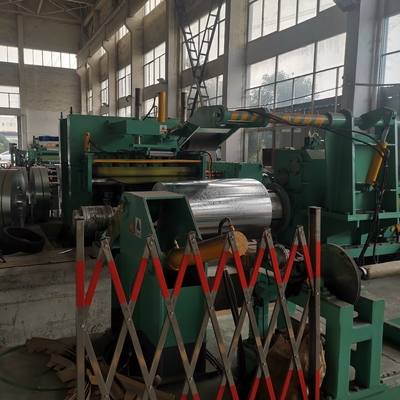

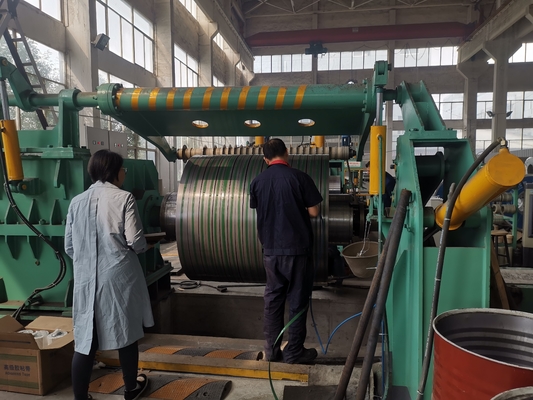

11. Hydraulic recoiler
12. Unloading trolley
13. Hydraulic system
14. Electrical system
Thin sheet slitting line is suitable for coil strip thickness (0.2~1) mm, (0.3-2) mm, (0.3-3) mm and (0.4-4)mm; while strip width is changeable: 600mm. 1000mm, 1250mm, 1600mm, 1800mm and so on.
II. Detailed technical data for our think Slitting lines:
MA-(0.3～3)×1600mm Coil Slitting Machine in Serbia
Material of coils: HRC, CRC, GI, PPGI, Q195, Q235, Q345...
Strip thickness: (0.3-3) mm
Max. Strip width: 1600mm
coil ID: ≥Φ508mm
Coil OD: Φ1800mm
Max. Coil weight: 20000Kgs
Slitter motor: 75KW DC motor
Slitter shaft: Ф220 x 1650mm
Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
Separating disc: ID85 x OD210mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
Recoiler block: Ф508 x 1700mm
Recoiler motor: 90KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 100m/min, adjustable.
III. Specification form of Metal Coil Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 50m/min |
| MA-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 80m/min |
| MA-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 100m/min |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
