Product Details:
|
| Product Name: | Cold Rolling Mill | Raw Material: | Q235, SPCC, SS400, SPHC, Etc. |
|---|---|---|---|
| Width: | B≤600mm | Input Thickness: | 1.5 Mm |
| Output Thickness: | 0.1 Mm | Thickness Tolerance: | Generally ≤0.01mm |
| Max. Coil Weight: | 10t, As Required | Incoming Coil Diameter (inner/outer): | Φ600,Φ750/1600mm, As Required |
| Output Coil Diameter (inner/outer): | Φ600,Φ750/1600mm, As Required | Screw Down System: | Manual/Electrical |
| Highlight: | AGC Reversing Cold Rolling Mill,12Hi Reversing Cold Rolling Mill,reversible 12 hi cold rolling mill |
||
1. Product description:
12-Hi AGC Reversing Cold Rolling Mill for Sheet Coils
2. Introduction:
The 12-Hi AGC Reversing Cold Rolling Mill for Sheet Coils, one of metal coil cold rolling mill, is made from good quality raw material. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill. Due to different numbers of rollers, the metal coil cold rolling mill is divided into2 Hi, 4 Hi, 6 Hi, and12 Hi AGC.
3. Features:
4. Technical Parameters:
|
Model No. Technical Parameters |
650 | 750 | 850 |
| Material | Carbon steel & low alloy steel | Carbon steel & low alloy steel | Carbon steel & low alloy steel |
| Material Thickness (mm) | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
| Material Width (mm) | 400-500 | 500-650 | 600-750 |
| Output Thickness (mm) | 0.18-0.5 | 0.18-0.5 | 0.18-0.5 |
| Rolling Force (KN) | 5500 | 6500 | 7500 |
| Backup Roller Size (mm) | Φ550×600 | Φ650×700 | Φ750×820 |
| Middle Roller Size (mm) | / | / | Φ300/Φ280×820 |
| Work Roller Size (mm) | Φ185/Φ165×650 | Φ205/Φ190×750 | Φ230/Φ205×850 |
| Drive Mode | By work roller | By work roller | By work roller |
| Main Motor | DC motor | DC motor | DC motor |
| Reducer | Combined gearbox | Combined gearbox | Combined gearbox |
| Uncoiler (optional size) | Φ508/Φ610×650 | Φ508/Φ610×750 | Φ610×850 |
| Recoiler (optional size) | Φ508×650 | Φ508×750 | Φ508×850 |
| Rolling Speed (m/min.) | 180-480 | 240-600 | 240-600 |
| Uncoiler Tension (KN) | 30 | 35 | 45 |
| Recoiler Tension (KN) | 10-70 | 10-80 | 10-90 |
| Screwdown Method | Mechanical/Hydraulic AGC | Mechanical/Hydraulic AGC | Mechanical/Hydraulic AGC |
Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.

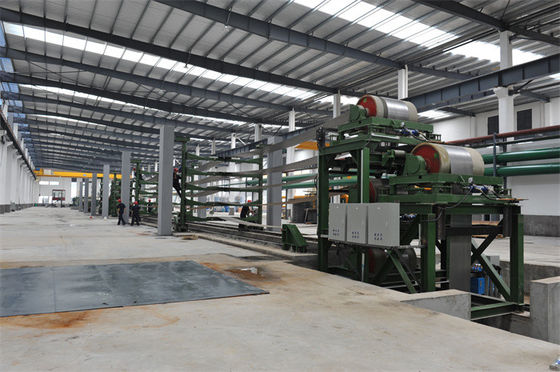

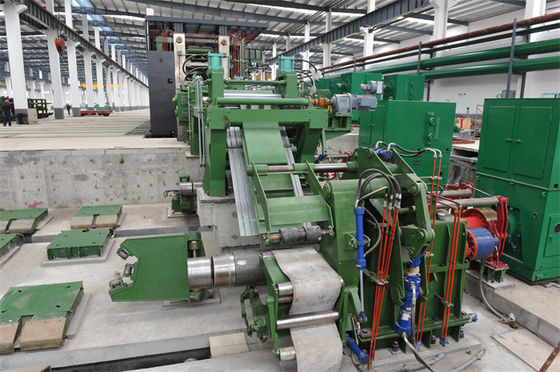

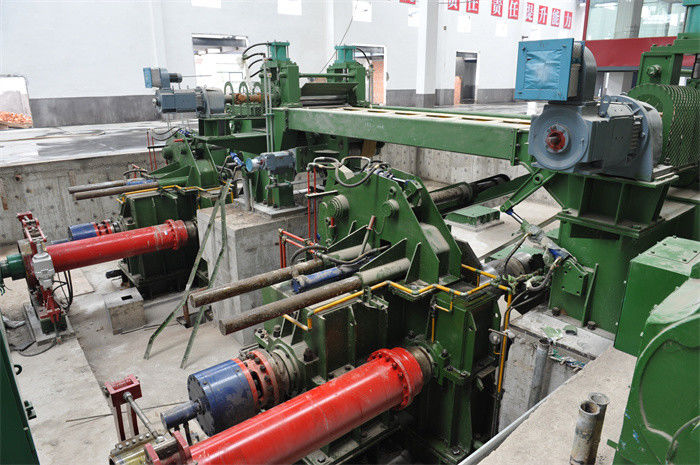

5. Machine photo for reference:
6. Packaging:
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
7. Warranty term: 12 months (excluding easy-broken parts)
8. Our service and features:
8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
