Product Details:
|
| Product Name: | Cold Rolling Mill | Strip Thickness: | 0.3~3mm |
|---|---|---|---|
| Strip Width: | 300~1600mm | Max.coil Weight:: | 15000kg |
| Voltage:: | 380V 50Hz 3phases Or Order By The User | Quality Guarantee: | One Year |
| Color: | As Our Standard Or Order By User | ||
| Highlight: | CE 2 hi cold rolling mill,250mm 2 hi cold rolling mill,13m/min CRM in steel plant |
||
1. Description of goods

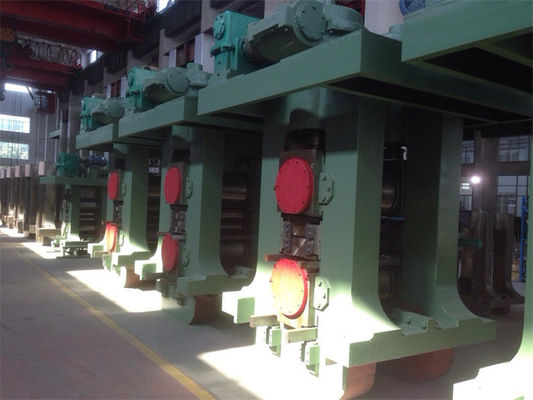

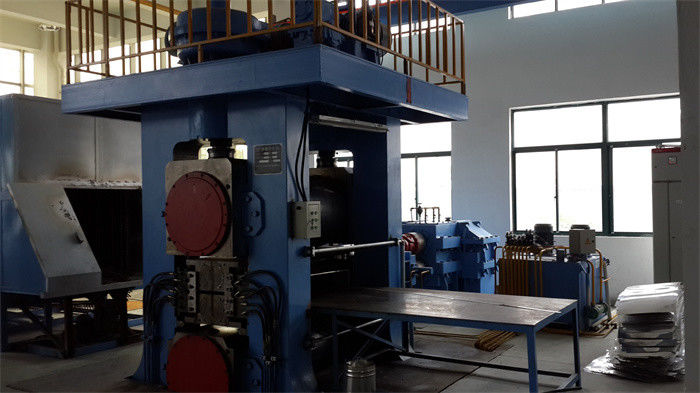

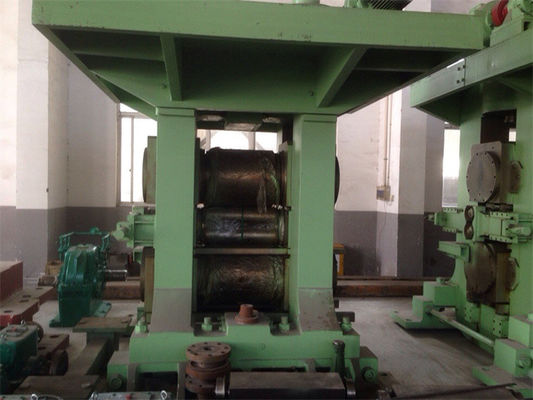

2 Hi Cold Rolling Mill controlled by hydraulic roller bending device with One stand and two frames
2. Introduction:
The 2-Hi cold rolling mill, one of metal coil cold rolling mill, is made from good quality raw material. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill. Due to different numbers of rollers, the metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and 12 Hi AGC.
3. Features:
1. The 2-Hi cold rolling mill is a kind of portable type.
2. One stand and two frames are made from fabricated steel plates.
3. The number 2 Rolls on this cold rolling mill are made of chilled material.
4. It is equipped with heavy duty reduction gear.
5. The screw down system is manual.
6. We adopt one number C.I. casting flywheels.
4. The detail specification as follows:
Ф165×250 Two High Cold Rolling Mill
Rolling Conditions:
Material: carbon steel
Input width: ≤150mm, thickness: 2.75mm
Output width: ≤150mm, thickness≥: 0.8mm
Rolling force: p＝60t
Rolling speed: v≤13m/min
Parameters of Ф165×250 Two High Cold Rolling Mill:
Rolling mill: Ф165×250 two roller mill
Electric screw-down motor: 2.2kw×2
It can be pressed down or lifted at the same time, and pressed down or lifted separately.
Worm gear box: HT200
Main motor: YZ type, 30kw-6
Main reducer: JZQ650
Coiler: It adopts hydraulic expansion cylinder.
Reducer: JZQ350
Motor: YLJ180-160-6
5. Technical Parameters of 2-Hi Cold Rolling Mill:
| Type | Φ120 × 160 | Φ150 × 220 | Φ175 × 400 | Φ250 × 500 | Φ320 × 600 | Φ400 × 800 | Φ500 × 1000 |
| Input thickness (mm) | ≤4 | ≤4 | ≤4 | ≤8 | ≤10 | ≤20 | ≤30 |
| Output thickness (mm) | 0.15 | ≥0.35 | ≥0.35 | ≥0.4 | ≥0.4 | ≥0.5 | ≥0.6 |
| Strip (mm) | 10-100 | ≤150 | 300 | 370 | 450 | ≤600 | 800 |
| Rolling pressure (T) | 65 | 100 | 100 | 120 | 150 | 160 | 260 |
| Rolling speed (m/min) | 12 | 13 | 13 | 13 | 13-15 | 13-15 | 15-25 |
| Main motor (KW) | 22 | 30 | 37 | 55 | 75 | 155 | 160 |
| Press-down motor (KW) | 1.5 | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 |
| Press-down speed (mm/s) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.12 | 0.12 |
| Speed reducer | JZQ550 | JZQ750 | JZQ750 | JZQ750 | JZQ1000 | JZQ115 | JZQ130 |
| Weight (T) | 4.8 | 5.8 | 7 | 12.8 | 19 | 40 | 50 |
