Product Details:
|
| Product Name: | Metal Coil Cold Rolling Mill-two Stands With Higher And Stably Speed | Material Of Coils: | CR Galvanized Steel Plate, Carbon Steel And Etc. |
|---|---|---|---|
| Strip Thickness: | 0.3~3mm | Strip Width: | 300~1600mm |
| Max.coil Weight:: | 15000kg | Voltage:: | 380V 50Hz 3phases |
| Quality Guarantee: | One Year | Color: | As Our Standard Or Order By User |
| Highlight: | 0.15-1.2mm metal cold rolling mill,3.5m/s metal cold rolling mill,Two Stands CRM mill |
||
1. Description of goods:

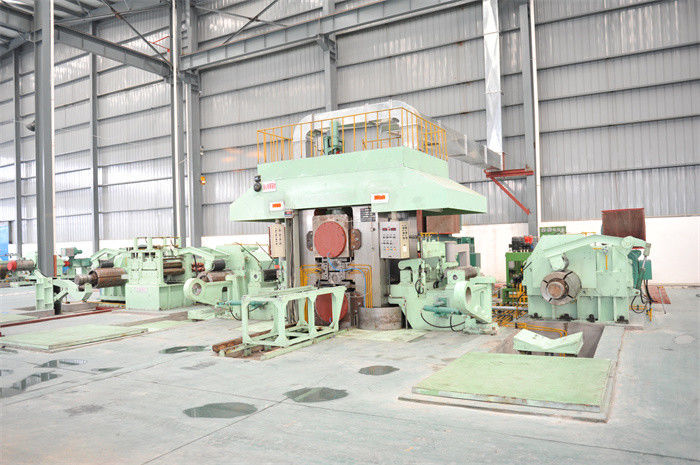

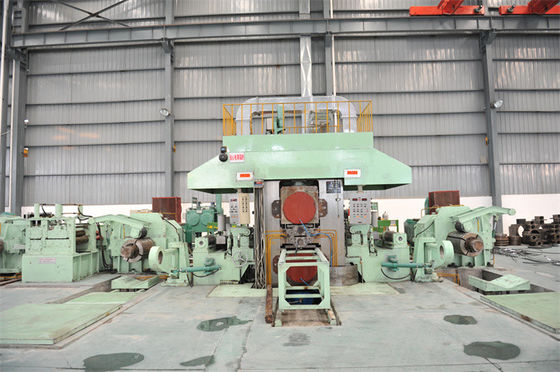

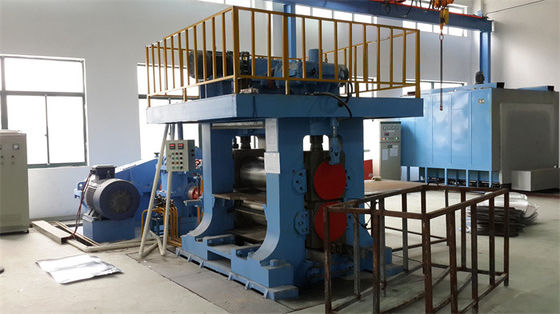

Metal Coil Cold Rolling Mill-two stands with higher and stably speed
2. Introduction:
From planning, engineering, implementation and modernization of your products, Jingye Company can be your preferred supplier and manufacturer for metal cold rolling mills.
Due to different numbers of rollers, the metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and 12 Hi AGC. The metal cold rolling mills is operated by PLCs (programmable logic controller) using latest technology and digital drives. So a high degree of automation can be achieved.
3. Features:
1. Even if our cold rolling mill rolls very thin gauges, these metal coil cold rolling mills from Jingye Company can also offer excellent performance.
2. We provide our clients with cost-effective solution for designing, development and commissioning of the mills.
3. Our cold rolling mills are available with coolant, filtrations and other accessories.
4. Main technical parameter:
| Type | Φ150/Φ175/Φ460×450 | Φ150/Φ175/Φ500×500 | Φ165/Φ200/Φ630×650 | Φ165/Φ250/Φ680×800 | ||||
| Input thickness(mm) | 1.0-2.5 | 1.0-2.5 | 1.0-3.5 | 1.0-3.5 | ||||
| Finished thickness(mm) | 0.15-1.2 | 0.15-1.5 | 0.18-2.0 | 0.2-2.0 | ||||
| Coil (mm) | 250-350 | 300-400 | 400-500 | 550-700 | ||||
| Drive | Work roller | Work roller | Work roller | Work roller | ||||
| Rolling force(KN) | 2800 | 3500 | 5000 | 5500 | ||||
| Press-down | motor | hydraulic | motor | hydraulic | motor | hydraulic | motor | hydraulic |
| Rolling speed(m/s) | 3.5 | 4-6.5 | 3.5 | 4-8 | 3.5 | 4-5 | 3.5 | 4-5 |
| Rolling material | Normal carbon steel | Normal carbon steel | Stainless steel or carbon steel | Stainless steel | ||||
