Product Details:
|
| Material Of Sheet: | HR Steel Coil Cut To Length Line | Strip Thickness: | 3-12mm |
|---|---|---|---|
| Strip Width: | 300~1600mm | Max.coil Weight:: | 15000kg |
| Voltage:: | 380V 50Hz 3phases | Quality Guarantee: | One Year |
| High Light: | 12x1600mm sheet metal cut to length machine,20m/min sheet metal cut to length machine,3-12mm cut to length lines |
||
1. Description of goods:
MA-(3-12)×1600mm Thick sheet CTL Line with High precision by PLC
2. Introduction:
Thick plate cut-to-length line can meet customer’s request of max line speed 20m/min by uncoiling and leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets.

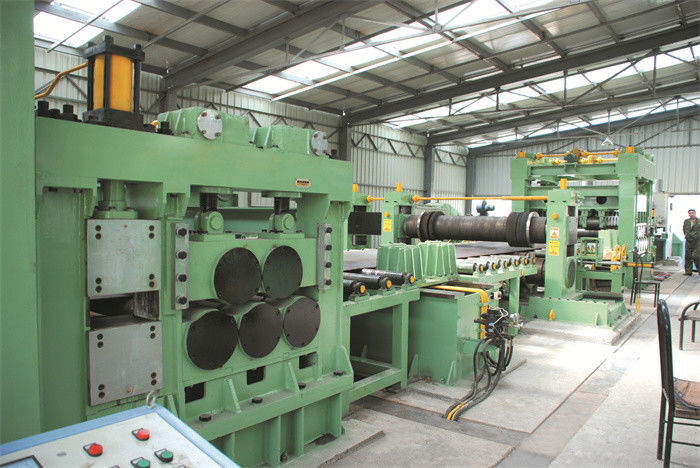

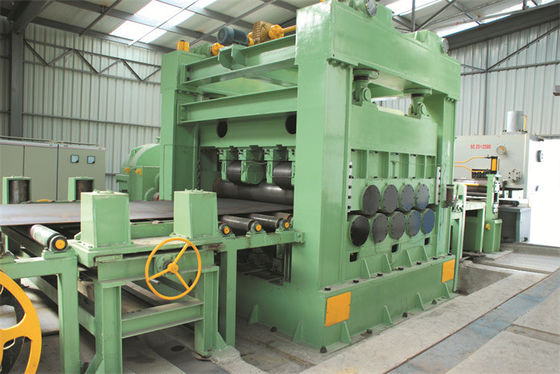

The cut-to-length line (plate CTL Machine) has one pre-leveling machine and one fine leveling machine driven by DC or AC motors, and the length-fixing is by encoder, shearing style is stop-shear.
The thick plate cut-to-length line (plate CTL machine) fit steel coils with thickness: (3~12mm, 4~16mm, 5-20mm) and changeable width, and length of finished sheets depend on customer’s practical need.
3. Advantages & Characteristics of Plate CTL Machine:
Plate CTL Machine with High precision
Line speed can be up to 20m/min, 4-5pcs/min 2000mm Length sheets in average.
Leveling precision: ±1.5mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±1mm/m
Input material: CR, HR carbon steel coils, GI, PPGI steel plates.
MA-(3~12)×1600mm/2000mm/2500mm Thick Plate Cut to Length Line
Plate CTL Machine Strip thickness: 3~12mm
Strip width: 600~1600mm, 800-2000mm, 1100-2500mm
Leveling roller: Φ180, 13pcs
Material of leveling roller: 40Cr, HRC55-56
Power for leveling: 132KW DC motor + Eurothem 590 DC speed control
Plate CTL Machine Cutting speed: (0~20) m/min, adjustable
| Detail specification: Model | Thickness | Length | Leveling speed | |
| MA-12 x 1600 | 3-12mm | 600-1600mm | adjustable | Max 20m/min |
| MA-16 x 1800 | 4-16mm | 1000-1800mm | adjustable | Max 20m/min |
| MA-20 X 2000 | 5-20mm | 1000-2000mm | adjustable | Max 20m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each thick plate cut-to-length line,plate CTL machine according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | ||||
