Product Details:
|
| Material Of Coils: | Coil Slitting Machine | Strip Thickness: | 3~12mm |
|---|---|---|---|
| Strip Width: | 500~1800mm | Max.coil Weight:: | 35000kg |
| Voltage:: | 380V 50Hz 3phases | Diameter Of Leveling Rollers & Tensioning Roller: | Φ210 |
| Metal Coil Slitter Diameter Of Slitter Shaft: | Φ300 | Quality Guarantee: | One Year |
| High Light: | 3-12mm Steel Coil Slitting Machine,CE Steel Coil Slitting Machine,350KW high precision slitting machine |
||
1. Description of goods:

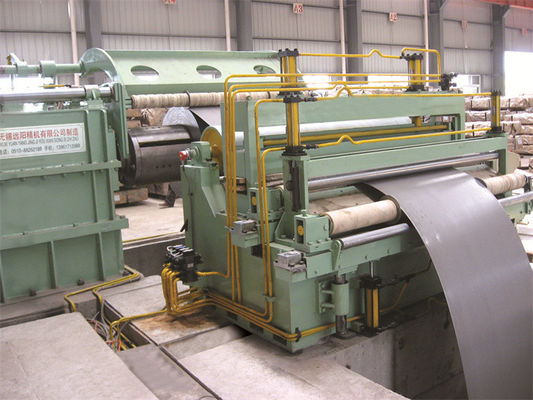

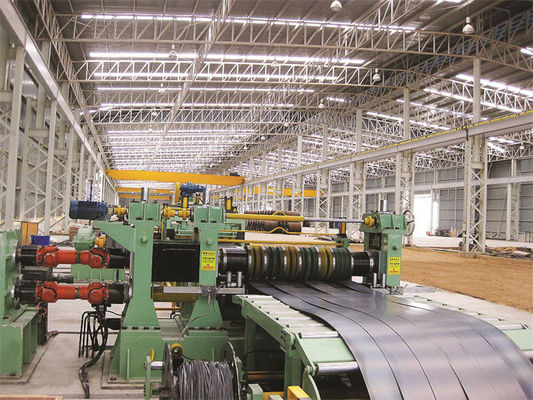

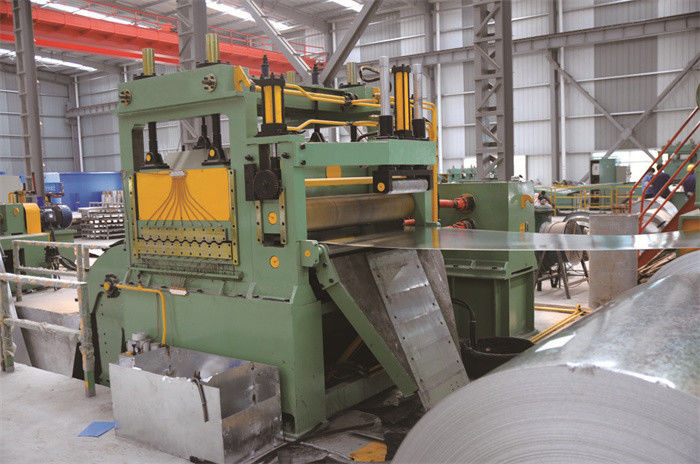

MA-(3-12)×1800mm Steel Coil Slitting machine for a whole line with Rated power 350KW,line direction from left to right
2. Main technical parameter:
Material of coils: HR/CR carbon steel, galvanized plate, colored steel plate etc.
Metal Coil Slitter Strip thickness: (3~12) mm
Coil Slitting Machine Strip width: 500~1800mm
Max.coil weight: 35000kgs
Diameter of leveling rollers & tensioning roller: Φ210
Metal Coil Slitter Diameter of slitter shaft: Φ300
Disc cutters: 6CrW2Si, HRC56°~58°, OD500mm x ID300mm x T25mm.
Diameter of recoiler block: Φ610mm
Separating discs: 65Mn, OD250 x ID95 x T10/20mm
Coil Slitting Machine DC motors for slitter and recoiler: 160KW, 200KW.
Metal Coil Slitter speed: (0~30) m/min, adjustable
3. Specifications of Metal Coil Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-12 x 1800 | 3-12mm | 600-1800mm | Max 35T | Min. 60mm | 30m/min |
| MA-16 x 2200 | 4-16mm | 800-2200mm | Max 40T | Min. 100mm | 30m/min |
| MA-20x 2000 | 5-20mm | 800-2000mm | Max 40T | Min 100mm | 20m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer’s specific requirements, so each customer can buy his own well-content coil slitting machine from us. | |||||
4. Features of Steel Coil Slitting Line:
1. After slitting, the strips need coiling on the equipment.
2. Commonly, the D.C. drives are used on slitter, coiler and uncoiler so that the different mandrel speeds are retained. Therefore, the constant line speed is attained too.
3. Additionally, for faster speeds and thinner strips a loop pit is provided for installation before recoiling with tensioner equipment
4. Any different specification is available, as we can offer a comprehensive range of steel. We design and produce products in accordance with customers needs.
5. Application of Steel Coil Slitting Line:
This sheet metal slitting machine is suitable to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials.
