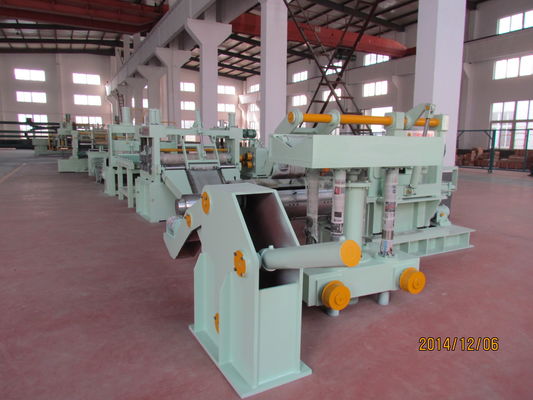

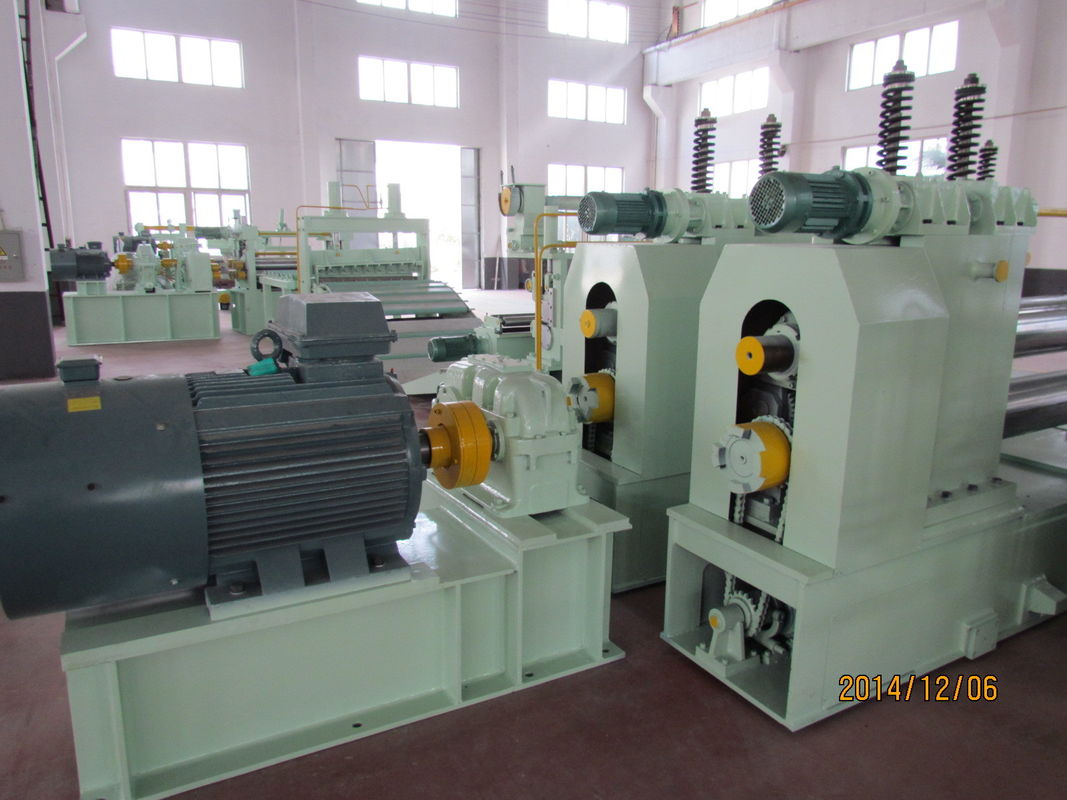

0.3-3x1600mm Steel Strip Slitting Machine 100m/min Adjustable

1. Product name

MA-(0.3～3)×1600mm Strip Slitting Machine with stably speed or high speed for cutting strip​

2. Technical parameter:

• Material of strip: HRC, CRC, GI, PPGI, Q195, Q235, Q345...
• Strip thickness: (0.3-3) mm
• Max. Strip width: 1600mm
• Coil ID: ≥Φ508mm
• Coil OD: Φ1800mm
• Max. Coil weight: 20000Kgs
• Slitter motor: 75KW DC motor
• Slitter shaft: Ф220 x 1650mm
• Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
• Separating disc: ID85 x OD210mm x 6mm, 65Mn
• Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
• Recoiler block: Ф508 x 1700mm
• Recoiler motor: 90KW DC motor
• Electric control: Eurotherm 590 DC driver cabinet plus control panels.
• Slitting speed: max 100m/min, adjustable.

3. Specifications:

4. Our service

Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.

5. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.

6. Main features:

• We can make and design all kinds of special machine according to customer's requests.
• This is a very perfect and durable equipment. We have more than 10 years experiences.
• This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
• We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
• Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
