Product Details:
|
| Description: | Hot Scrap Rolling Mill Rolls Steel Cold Rolling Mill Machines | Output Width: | ≤150mm |
|---|---|---|---|
| Rolling Force: | P=60T | Rolling Speed: | V≤13m/min; |
| Voltage: | 380V 50Hz 3phases | Quality Guarantee: | One Year |
| Material: | Carbon Steel | Equipment Color: | As Our Standard Or As The User Ordered |
| High Light: | Two Roller Continuous Cold Rolling Mill,250mm Continuous Cold Rolling Mill,One Stand CRM in steel plant |
||
1. Description of goods:

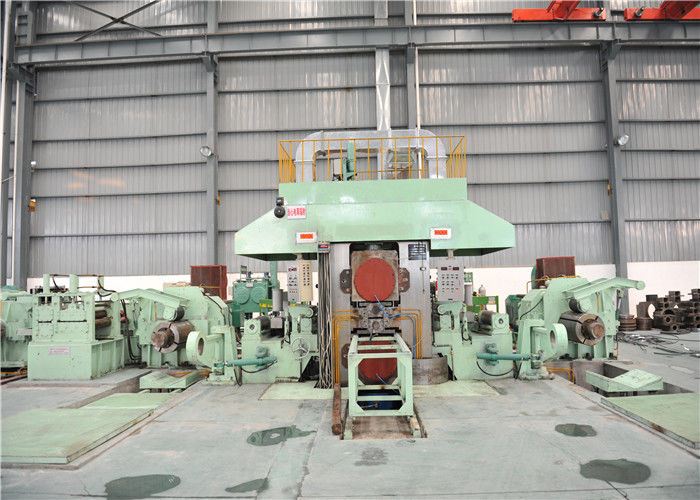

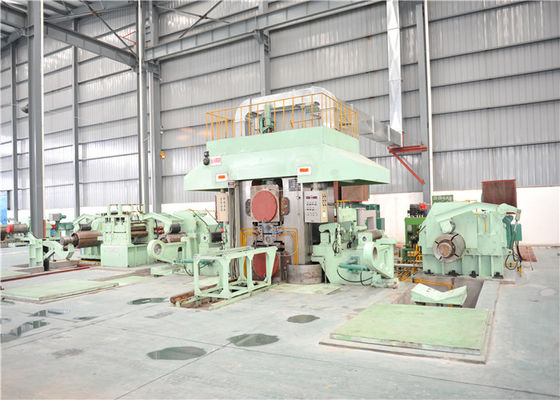

Two roller Cold Rolling mill machine with stably quality for MA-Ф165×250-one stand China made
2. Rolling Conditions:
Material: carbon steel;
Input width: ≤150mm, thickness: 2.75mm;
Output width: ≤150mm, thickness≥: 0.8mm;
Rolling force: p＝60t;
Rolling speed: v≤13m/min;
3. Parameters of Ф165×250 Two High Cold Rolling Mill:
Rolling mill: Ф165×250 two roller mill;
Electric screw-down motor: 2.2kw×2
It can be pressed down or lifted at the same time, and pressed down or lifted separately;
Worm gear box: HT200;
Main motor: YZ type, 30kw-6;
Main reducer: JZQ650;
Coiler: It adopts hydraulic expansion cylinder;
Reducer: JZQ350;
Motor: YLJ180-160-6;
4. Technical Parameters of 2-Hi Cold Rolling Mill:
| Type | Φ120 × 160 | Φ150 × 220 | Φ175 × 400 | Φ250 × 500 | Φ320 × 600 | Φ400 × 800 | Φ500 × 1000 |
| Input thickness (mm) | ≤4 | ≤4 | ≤4 | ≤8 | ≤10 | ≤20 | ≤30 |
| Output thickness (mm) | 0.15 | ≥0.35 | ≥0.35 | ≥0.4 | ≥0.4 | ≥0.5 | ≥0.6 |
| Strip (mm) | 10-100 | ≤150 | 300 | 370 | 450 | ≤600 | 800 |
| Rolling pressure (T) | 65 | 100 | 100 | 120 | 150 | 160 | 260 |
| Rolling speed (m/min) | 12 | 13 | 13 | 13 | 13-15 | 13-15 | 15-25 |
| Main motor (KW) | 22 | 30 | 37 | 55 | 75 | 155 | 160 |
| Press-down motor (KW) | 1.5 | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 |
| Press-down speed (mm/s) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.12 | 0.12 |
| Speed reducer | JZQ550 | JZQ750 | JZQ750 | JZQ750 | JZQ1000 | JZQ115 | JZQ130 |
| Weight (T) | 4.8 | 5.8 | 7 | 12.8 | 19 | 40 | 50 |
5. Our service:
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
6. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
