Product Details:
|
Description Of Goods: | Steel Coil Slitting | Material Of Coils: | Carbon Steel, Color Steel, Galvanized Steel And Etc |
---|---|---|---|
Strip Thickness: | 0.2~1 Mm | Strip Width: | 600mm |
Inner Diameter Of Coils: | Φ508mm | Max. Outer Diameter Of Coils: | Φ1500mm |
Max. Coil Weight: | 8000kg | Voltage: | 380V 50Hz 3phases |
Highlight: | 600mm metal coil slitting machine,CE metal coil slitting machine,0.2-1mm steel slitting equipment |
1. Description of goods:

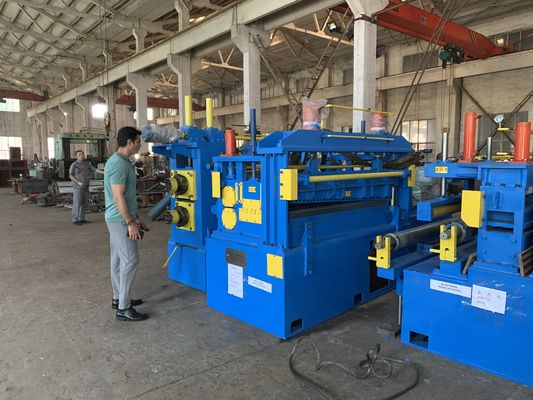

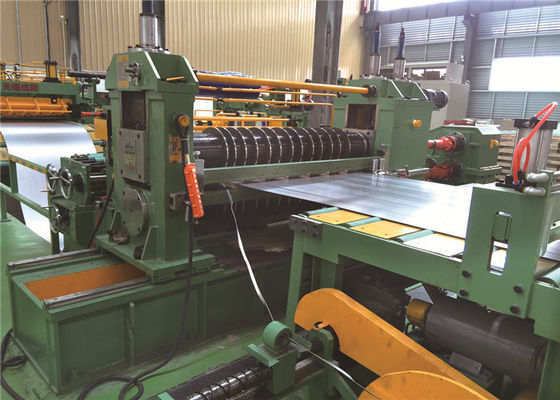

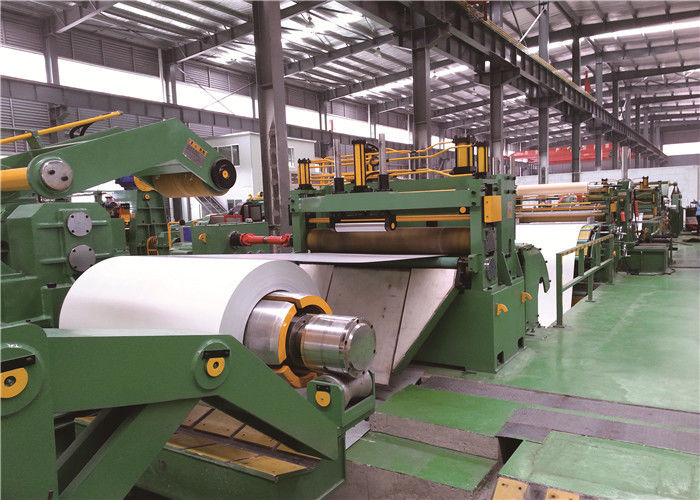

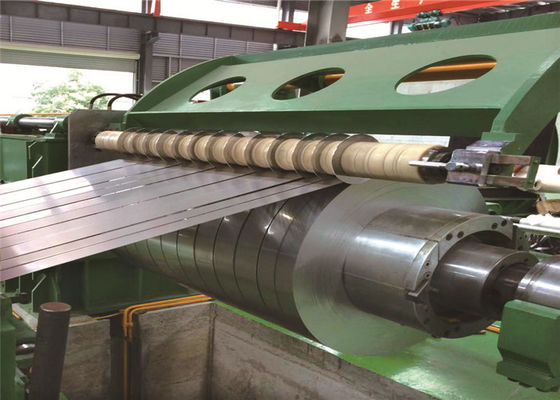

MA-(0.2~1)×600mm Steel Coil Slitting Line for coils 8000kg with single arm hydrualic decoiler made by China MAZS
2. Specifications:
Material of coils | carbon steel, color steel, galvanized steel and etc. |
Strip thickness | 0.2~1 mm |
Strip width | 600mm |
Inner diameter of coils | Φ508mm |
Max. Outer diameter of coils | Φ1500mm |
Max. Coil weight | 8000kg |
Recoiling block | Ф508 x 700 |
Recoiler motor | AC 37KW |
Slitter shaft | Ф180 x 700 |
Slitter motor | AC 22KW |
Material of disc cutter | ID180mm x OD300mm x 8/10mm, 6CrW2Si, HRC58-60 |
Slitting speed | (0~50) m/min, adjustable |
3. Our service:
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
4. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
5. Main features:
